Genuine OEM Part

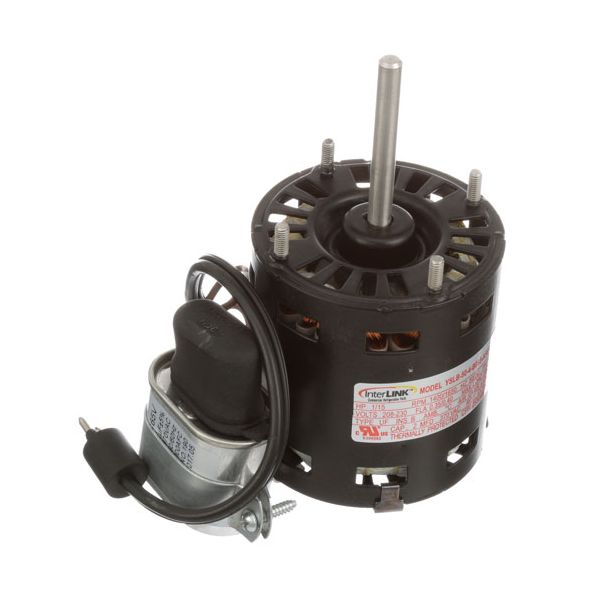

main product photo

Bohn 25309801S Refrigerator Evaporator Fan Motor 208V CWSE

Be the first to review this product
Special Price $196.92 Regular Price $278.13
In stock
SKU
25309801S
Add to Wish List
Electrical & Hardware, Fans & Blower Motors,
Manufacturer:
The Bohn 25309801S Evaporator Fan Motor operates as a dependable system component that controls airflow in refrigeration systems. The Bohn 25309801S Evaporator Fan Motor exists as a black steel-built component that carries 3.85 lbs of Density while maintaining a compact shape of 3" length and 3 1/4" width. This single-phase motor operates on 208/230 V AC power with a 1.0/.84 amp rating to reach 1550 RPM for efficient cooling performance. The motor has a 9 1/2" cord and 2 3/8" shaft with clockwise shaft rotation that allows flexible installation.

Dimensions

  • Length: 8.5 In
  • Width: 6.25 In
  • Height: 5 In
  • Weight: 4.22 lbs
https://partsfe.com/media/catalog/product/b/o/bohn-25309801s-refrigerator-evaporator-fan-motor-208v-cwse-19266-2.jpg

Product Notes

  • Color: Black
  • Material: Steel
  • Weight: 3.85 Lb
  • Length: 3" | 76 mm
  • Width: 3 1/4" | 83 mm
  • Voltage: 208/230 V Ac
  • Amp: 1.0/.84
  • Phase: 1
  • Revolutions Per Minute: 1550
  • Type: 9 1/2" Cord And 2 3/8" Shaft
  • Rotation: Clockwise From Shaft End
HEATCRAFT:
Reviews
Write Your Own Review
You're reviewing:Bohn 25309801S Refrigerator Evaporator Fan Motor 208V CWSE
Your Rating
FAQS
Customer Questions
How to Replace Evaporator Fan Motor in Ice Machine?

The Evaporator fan motor blows the air all over the evaporator coils and also through the refrigerator for cooling purposes. And it removes the heat in the circulating air. Commercial refrigeration applications use evaporator fan motors. Industrial...

Read More
What maintenance is required for the Bohn 25309801S Evaporator Fan Motor?

Keep the refrigerator motor and fan blades clean to prevent dust buildup that can strain the motor. Inspect wiring connections and mounting brackets for tightness and wear. Ensure bearings are properly lubricated if applicable and check for smooth, quiet operation during running cycles.

What are common issues with the Bohn 25309801S Evaporator Fan Motor?

  • Refrigerator motor failure or complete non-start condition.
  • Noisy operation from worn bearings or imbalance.
  • Reduced airflow due to weak rotation.
  • Electrical issues such as faulty wiring or capacitor failure.
  • Overheating during extended operation.
  • Intermittent stopping or inconsistent speed performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and apply lockout tagout, verify evaporator area is fully defrosted and safe.

Step2: Remove evaporator panel and disconnect old fan motor wiring harness carefully.

Step3: Unbolt motor assembly from mounting bracket and retain hardware.

Step4: Install new motor, secure with bolts, and reconnect wiring per diagram.

Step5: Ensure proper rotation alignment, replace cover, restore power, test airflow.
