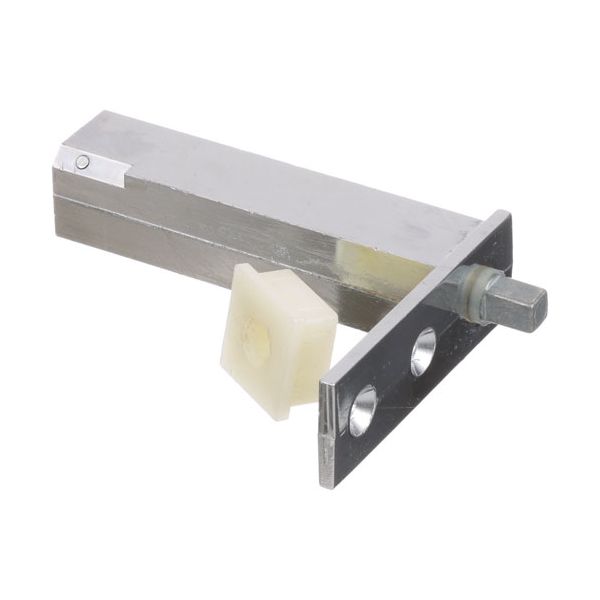

Delfield 3237516 Concealed Cartridge Door Hinge Assembly W/Extended Pin

Be the first to review this product
Special Price $14.44 Regular Price $59.00
In stock
SKU
3237516
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 3237516 Concealed Hinge with Extended Pin is installed between the cabinet frame and the door to enable the gate to pivot without the hardware of the hinge being visible. The long pin provides it the required length and positioning in the entrance assembly. This is a lock that fits into compatible foodservice units at the edge of the opening and is placed in the joint between the cabinet and the panel. It serves as the mechanical linkage that allow the window to be opened and closed in a controlled manner.

Dimensions

  • Length: 4.625 In
  • Width: 3 In
  • Height: 1 In
  • Weight: 0.5 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3237516-concealed-hinge-w-extended-pin-55747-2.jpg

Product Notes

  • Concealed Hinge, W/Extended Pin, No Stop.
  • Reversible Cartridge
  • Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,
  • 4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,
  • 4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,
  • 4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,
  • 4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,
  • 6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,
  • 6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427N, D4432N,
  • D4448N, D4448N-18M, D4460N, D4464N, D4472N, St4427N,
  • St4432N, St4448N, St4460N, St4464N, St4472, St4472N,
  • St4560N, Std4427N, Std4432N, Std4448N, Std4460N, Std4464N,
  • Std4472N, Uc4048, Uc4148, Uc4427N, Uc4432N, Uc4448N,
  • Uc4460N, Uc4464N, Uc4472, Uc4472N, Uc4560N, Ucd4427N,
  • Ucd4432N, Ucd4448N, Ucd4460N, Ucd4464N, Ucd4472N
DELFIELD:
000BFW0030, 3230010, 3234225, 3237509, 3237516, 3237516-S, 3237516S, DEL3230010, DEL3234225, DEL3237509, DEL3237516, DEL3237516-S, DEL3237516S
Reviews
Write Your Own Review
You're reviewing:Delfield 3237516 Concealed Cartridge Door Hinge Assembly W/Extended Pin
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3237516 Hinge Extended Pin?

Keep hinge clean and free of grease buildup. Inspect the extended pin for wear or misalignment regularly. Tighten mounting screws periodically to maintain alignment. Lubricate moving parts lightly to ensure smooth door operation and reduce friction damage.

What are common issues with the Delfield 3237516 Hinge Extended Pin?

  • Pin wear causing door misalignment.
  • Hinge loosening under frequent use.
  • Binding or stiffness from debris buildup.
  • Excessive noise during door movement.
  • Pin loosening or detachment over time.
  • Uneven door closing alignment shift.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and remove the door for safe access.

Step2: Align hinge on cabinet frame and mark mounting points.

Step3: Pre-drill holes carefully to avoid damaging cabinet material.

Step4: Secure hinge using screws and ensure tight fit.

Step5: Attach door, insert extended pin, and check alignment.

Step6: Test swing motion; adjust if necessary for smooth operation.

Step7: Wear gloves and support door weight during installation always.
