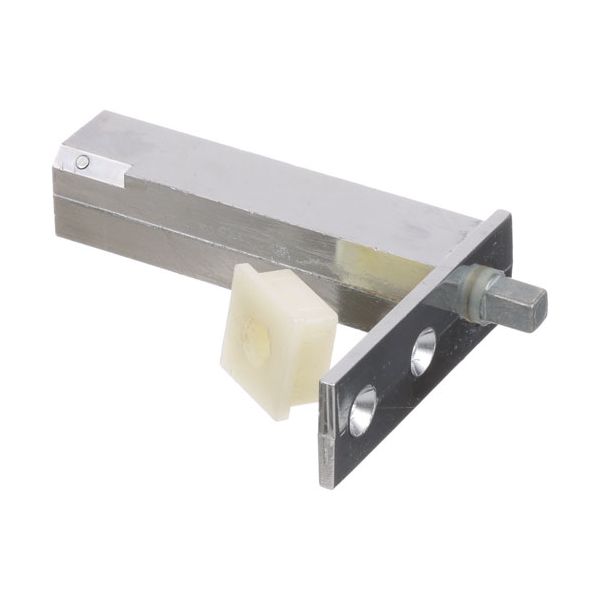

main product photo

Delfield 3237516-S Concealed Cartridge Door Hinge Assembly W/Extended Pin

Be the first to review this product
Special Price $14.44 Regular Price $59.00
In stock
SKU
3237516-S
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 3237516-S Concealed Cartridge Door Hinge Assembly With Extended Pin works with the support of the internal spring mechanism that is placed in a cylindrical housing to ensure the movement of the gate. The part is fitted into the gate frame and edge and cannot be seen when the unit is closed. This is a commercial cooling appliance designed to fit in commercial chilling units that require a flush exterior form. Integration is the process of ensuring the cartridge is locked into pre-drilled holes so as to ensure the seal is consistent and the structure is well balanced.

Dimensions

  • Length: 4.625 In
  • Width: 3 In
  • Height: 1 In
  • Weight: 0.5 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3237516-s-concealed-hinge-w-extended-pin-83614-2.jpg

Product Notes

  • Concealed Hinge, W/Extended Pin, No Stop.
  • Reversible Cartridge
  • Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,
  • 4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,
  • 4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,
  • 4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,
  • 4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,
  • 6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,
  • 6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427N, D4432N,
  • D4448N, D4448N-18M, D4460N, D4464N, D4472N, St4427N,
  • St4432N, St4448N, St4460N, St4464N, St4472, St4472N,
  • St4560N, Std4427N, Std4432N, Std4448N, Std4460N, Std4464N,
  • Std4472N, Uc4048, Uc4148, Uc4427N, Uc4432N, Uc4448N,
  • Uc4460N, Uc4464N, Uc4472, Uc4472N, Uc4560N, Ucd4427N,
  • Ucd4432N, Ucd4448N, Ucd4460N, Ucd4464N, Ucd4472N
DELFIELD:
000BFW0030, 3230010, 3234225, 3237509, 3237516, 3237516-S, 3237516S, DEL3230010, DEL3234225, DEL3237509, DEL3237516, DEL3237516-S, DEL3237516S
Reviews
Write Your Own Review
You're reviewing:Delfield 3237516-S Concealed Cartridge Door Hinge Assembly W/Extended Pin
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3237516-S Concealed Hinge With Extended Pin?

Regularly inspect the hinge for loosened screws, wear, and misalignment. Apply food-grade lubricant to moving parts to ensure smooth operation. Keep the hinge clean from grease and debris buildup. Tighten mounting hardware periodically to maintain proper door alignment and operation.

What are common issues with the Delfield 3237516-S Concealed Hinge With Extended Pin?

  • loose hinge pins causing door to sag.
  • misalignment leading to improper sealing.
  • squeaking or stiff movement during operation.
  • corrosion in high-moisture conditions.
  • worn pivot points causing instability.
  • noise under load conditions.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off appliance power and support the door to prevent drop before starting.

Step2: Remove existing hinge hardware carefully using correct driver.

Step3: Position concealed hinge on door and cabinet frame alignment points.

Step4: Insert extended pin then fasten screws securely without over-tightening.

Step5: Tighten all fittings, check smooth door movement and adjust.

Step6: Wear gloves and ensure door is supported throughout installation for safety.
