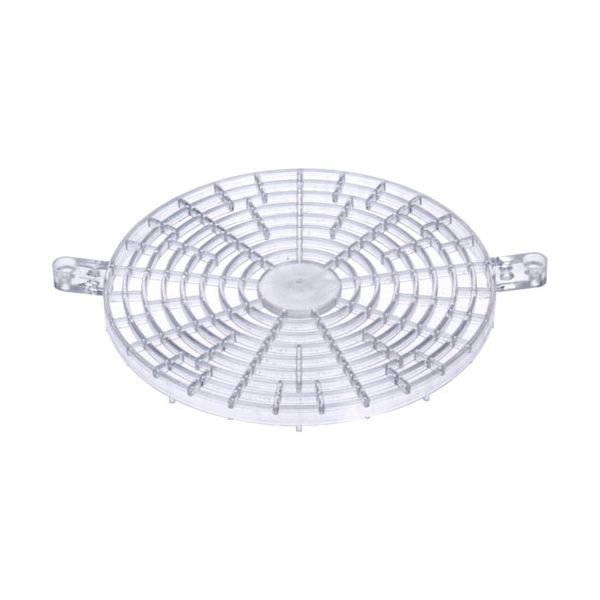

Delfield 3516173 Refrigerator Evaporator Fan Guard 6-3/8" DIA

Q: How to Replace Evaporator Fan Motor in Ice Machine?

The refrigerator will not cool properly if the evaporator fan doesn't work or the motor breaks. As the air acts as the main source of cooling, it spreads the cool breeze. If the fan motor doesn't run when it is activated, you need to replace it.

Be the first to review this product

Special Price $17.89 Regular Price $41.74

In stock

SKU

3516173

Categories: Ice Machine Parts, Evaporator Coils/Fans, Shop by manufacturers

Manufacturer:

Delfield

The Delfield 3516173 Refrigerator Evaporator Fan Guard 6-3/8" DIA control the airflow exposure around cooling fan while allowing a steady flow inside the refrigeration unit. It work by covering the rotating fan blade and maintaining separation between internal component and moving parts during operation. This fan cover is set up near the evaporator section inside compatible commercial appliance where airflow management and component shielding are required. The shield fits designated appliance assembly and support proper fan area coverage in foodservice cooling equipment.

Dimensions

Length: 8 In
Width: 6.375 In
Height: 0.375 In
Weight: 0.15 lbs

Product Notes

6-3/8" Dia., 7-1/2" Mt Hole Ctrs, 3/8" High, Clear Plastic
Delfield Model: Mark 7,186114-Buc, 186114-Ptb, 18648-Buc,
18648-Ptb, 18648Ptb, 18660-Buc, 18660-Ptb, 18672-Buc,
18672-Ptb, 18691-Buc, 18691-Ptb, 18699-Buc, 18699-Ptb,
18699Buc, 18699Ptb, 402, 403, 4048-St, 4048-Uc, 406, 406Cp,
407, 4148-St, 4148-Uc, 7048-M, 7048-P, 7048-S, Ctb8146-Nb,
Ctb8160-Nb, Ctb8175-Nb, F15Mc48D, F15Mc48N, F15Mc72D,
F15Mc72N, F15Mr48D, F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D,
F15Pc48N, F15Pc72D, F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D,
F15Pr72N, F15Sc48D, F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D,
F15Sr48N, F15Sr72D, F15Sr72N, F18Dc52, F18Dc60, F18Dc68,
F18Dc72, F18Dc82, F18Dc91, F18Dc99, F18Dr44, F18Dr52,
F18Dr60, F18Dr70, F18Dr79, F18Dr87, F18Fc62, F18Fc70,
F18Fc78, F18Fc88, F18Fr35, F18Fr50, F18Fr58, F18Fr66,
F18Fr76, F18Mc39A, F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E,

Details

An evaporator fan guard is used inside commercial refrigerators to help protect the area where the evaporator fan is installed. It is positioned around the evaporator fan to help prevent contact between the moving blades and any person or object that may come near it. The design still allows airflow so the cooling process inside the unit is not affected. The dimensions of 6-3/8 inches and 3/8 inches in height allow proper positioning inside the refrigerator. The part is made of clear plastic material and is used in various commercial refrigerators. If the fan guard becomes broken or improperly positioned, replacing it helps maintain safety and proper unit operation.

Equipment Compatibility:
Delfield Evaporator fan guards are used in commercial refrigerators and cold storage units found in restaurants, hotels, cafeterias, and other food service areas where airflow and fan protection are needed. This Evaporator Fan Guard 3516173 fits refrigeration systems from brands like Delfield, Russell, and other similar equipment makers, where fan safety and proper air movement are required for normal cooling.
Brand Compatibility
Replaces multiple part numbers used across commercial refrigeration equipment brands, including Delfield, Russell, and related cold storage systems. Refer to the “Replaces Parts” section for complete cross-reference and compatibility details.

Product Specifications:

Manufacturer: Delfield
Product Type: Evaporator Fan Guard
Diameter: 6-3/8"
Mounting Distance: 7-1/2"
Height: 3/8"
Material: Clear Plastic
Use: Protects the evaporator fan in refrigeration units

Key Features:

Covers the fan area to prevent direct contact with moving blades
Allows air to flow freely for proper cooling inside the unit
Clear plastic design makes it easy to see inside the system
Fits standard 7-1/2" mounting spacing for proper installation
Helps keep the fan area safe during normal operation

Replaces Parts

DELFIELD:

3516173, 3516173-S, 3516173S, DEL3516173, DEL3516173S

RUSSELL:

3246, RUS3246
