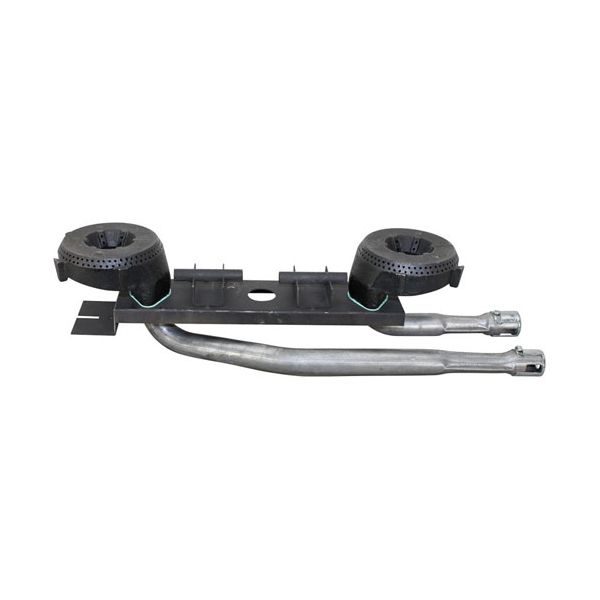

Vulcan Hart 5480-A Open Top Burner Assembly, Head Cast Iron/Steel
Special Price $102.64 Regular Price $188.16
Out of stock
SKU
5480-A
The Vulcan Hart 5480-A Open Top-Burner Assembly operates is a powerful commercial kitchen range burner which delivers consistent heat distribution. The assembly contains cast iron and steel burner components with air shutters and venturi tubes and mounting parts that ensure extended durability and reliable operation. The venturi tubes in front and rear positions control the airflow to improve combustion efficiency which results in uniform heating. The installation process becomes simple because of the precise gasket design and the secure mounting plate. The burner assembly functions perfectly in restaurants and catering kitchens and foodservice operations because it enables reliable efficiency alongside energy efficiency and uniform cooking outcomes.
Manufacturer:
Dimensions
- Length: 19.5 In
- Width: 6 In
- Height: 4.5 In
- Weight: 6 lbs
Product Notes
- Open Top Burner Assy
- [ 19.5"] From Air Shutter Side Of Long Venturi To The Burner
- Head Ci/Steel
- Air Shutter # 26-1863 (2),
- Burner Head # 24-1105 (2)
- Mounting Plate # 26-3218 (1)
- Gaskets # 32-1165 (4)
- Front Venturi # 26-3212
- Note: The Front Venturi Is 7" Long From
- Ctr Of Holes To End Of Air Shutter.
- Rear Venturi # 26-3213
- The Rear Venturi Is 15-5/8" Long From
- Ctr Of Holes To End Of Air Shutter.
- Mounting Screws 10-24 X 1/2" (4)
- Wolf Ch, Chss
