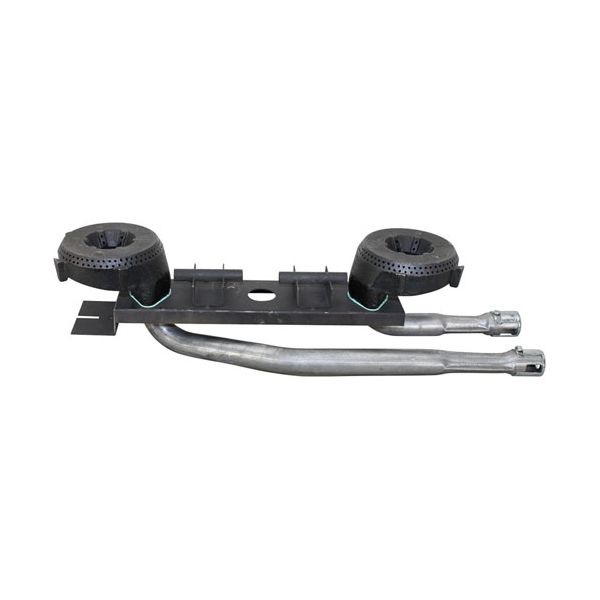

Vulcan Hart 705480-0000A Open Top Burner Assembly, Head Cast Iron/Steel
Special Price $102.64 Regular Price $188.16
Out of stock
SKU
705480-0000A
Vulcan Hart 705480-0000A Open Top-Burner Assembly is a commercial gas range component for delivering efficient heat distribution across the cooking surface. The assembly consists of materials to create a durable solution which includes burner heads and ventures together with mounting plates and gaskets and screws to provide a complete system for dependable cooking operations. The front and rear parts of this system use precise designed to optimize air circulation which results in better combustion efficiency and steady flame control. The burner assembly suits professional kitchens through its durable construction and simple installation process and enhanced energy efficiency features.
Manufacturer:
Dimensions
- Length: 19.5 In
- Width: 6 In
- Height: 4.5 In
- Weight: 6 lbs
Product Notes
- Open Top Burner Assy
- [ 19.5"] From Air Shutter Side Of Long Venturi To The Burner
- Head Ci/Steel
- Air Shutter # 26-1863 (2),
- Burner Head # 24-1105 (2)
- Mounting Plate # 26-3218 (1)
- Gaskets # 32-1165 (4)
- Front Venturi # 26-3212
- Note: The Front Venturi Is 7" Long From
- Ctr Of Holes To End Of Air Shutter.
- Rear Venturi # 26-3213
- The Rear Venturi Is 15-5/8" Long From
- Ctr Of Holes To End Of Air Shutter.
- Mounting Screws 10-24 X 1/2" (4)
- Wolf Ch, Chss
