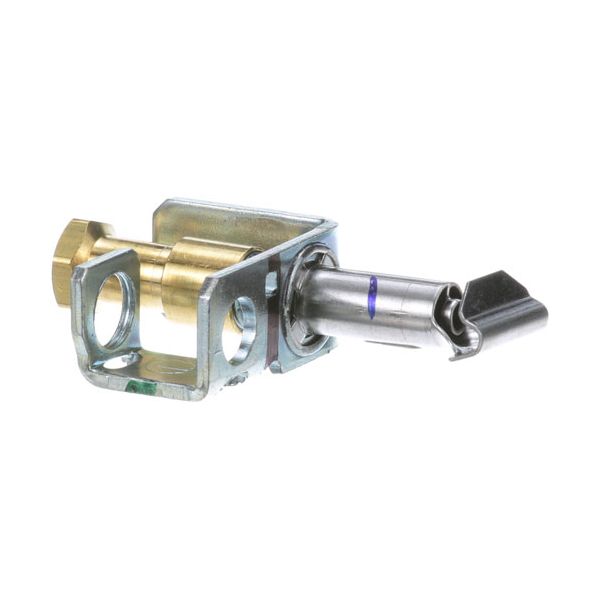

Dean 8100154 Pilot Kit Natural Gas 1/4" CCT

Rating:
5 5 1
1  Review Add Your Review
Special Price $41.38 Regular Price $53.75
In stock
SKU
8100154
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Dean 8100154 Pilot Kit 1/4" CCT is used to start the main burner with a continuous natural gas pilot flame which lights when heat is required by the control system. The gas is forced through the 1/4" CCT tube to the pilot orifice, where it combines with air to ensure a consistent flame pattern to consistently start the primary burners. This pilot kit is attached to the gas supply line and is mounted close to the main burner assembly combustion chamber of compatible equipment using brackets.

Dimensions

  • Length: 0.75 In
  • Width: 1.625 In
  • Height: 2.875 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/d/e/dean-8100154-nat-pilot-kit-w-flame-pattern-1-4-cct-tube-48682-2.jpg

Product Notes

  • Nat Pilot, Factory # 3Ch-6, 1830-010, Tube Size 1/4"Cct,
  • Flame Pattern Standard,
  • Includes # 26-1555 Orifice For Nat.
  • For Lp Use # 26-1554 Orifice For Lp.
  • Frymaster Fryer J3Fc, J65X, Jcfx Mac
  • 50,51,150,151,250,251,350,351),
  • Mj41E, Mj45E (England & Germany), Mjcf, Mjcfe.Series: Mje.
  • Garland Fryer 35-40, 35-50, 70-40, 35-28, Before 10/86
  • Montague Fryer J2Xlrsp, R2F2, Mj35.
  • Oven 28Cbsf Chinese Bbq.
  • Range Series: 136, Montague Ii R, V136, 3418, 3618
U-LINE:
1830-010
Reviews 1
Write Your Own Review
You're reviewing:Dean 8100154 Pilot Kit Natural Gas 1/4" CCT
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Dean 8100154 Pilot Kit?

Inspect the pilot assembly regularly for soot buildup and ensure the flame pattern remains stable and blue. Clean the orifice and tube to prevent clogging from grease or debris. Check tubing connections for leaks or looseness. Verify consistent ignition performance during routine appliance servicing.

What are common issues with the Dean 8100154 Pilot Kit?

  • Weak or unstable pilot flame caused by clogged orifice or gas restriction.
  • Delayed ignition or failure to light due to dirty components.
  • Flame lifting or irregular pattern indicating airflow imbalance.
  • Gas leaks or poor sealing at tube connection points.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and power to the fryer for safety.

Step2: Remove burner access panel.

Step3: Disconnect existing pilot assembly and tubing connections.

Step4: Install new tube and secure pilot kit in mounting position.

Step5: Align flame pattern toward burner assembly.

Step6: Tighten all fittings to avoid gas leaks.

Step7: Restore gas, check for leaks, and test ignition.
