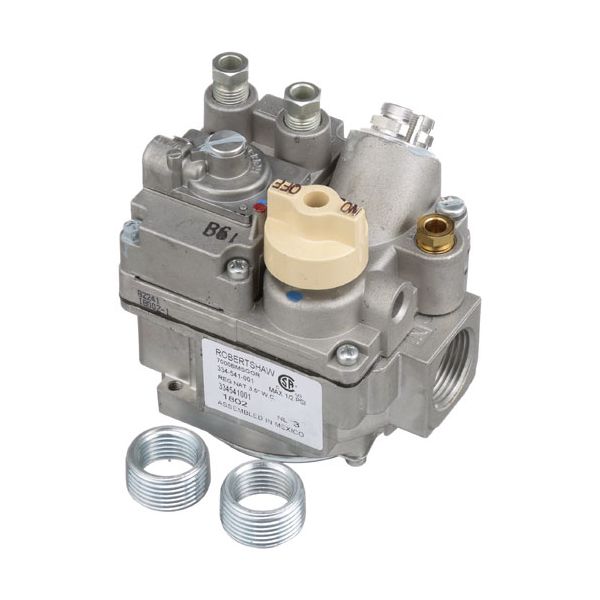

Garland GL1092700 Natural Gas Safety Bleed Gas Actuator W/Pilot 3/4" FPT 300,000 BTU
Special Price $249.24 Regular Price $397.50
In stock
SKU
GL1092700
Manufacturer:
The Garland GL1092700 Natural Gas Safety Bleed Gas Actuator with Pilot is intended to be used in commercial appliances and it ensures a regulated flow of gas and a secure ignition. It has a 300,000 BTU rating with a 3/4" FPT connection and is used to control the amount of fuel that goes to the burners and also provides a secure pilot operation. It is installed in the gas system of the appliance, and it communicates with the valves and ignition parts to ensure proper and stable operation.
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
