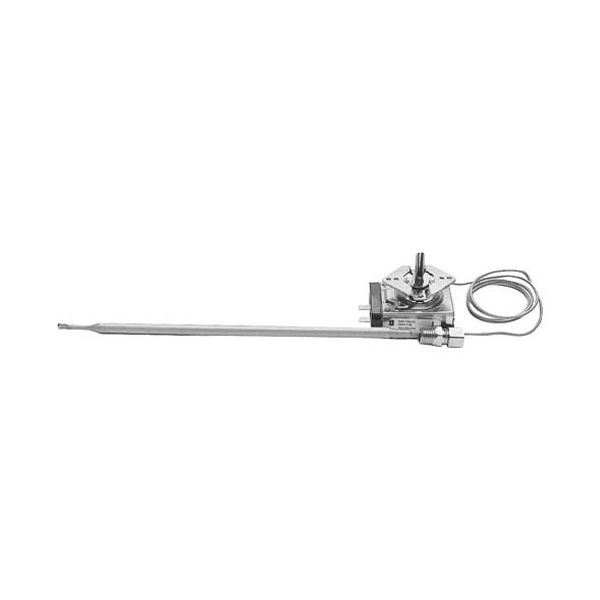

Keating H00360H Thermostat 245°-375°F 5/16" X 9-7/8" Bulb 30" CAP K-Type
Special Price $137.00 Regular Price $211.09
In stock
SKU
H00360H
Manufacturer:
The Keating H00360H Thermostat senses heat through its 5/16-inch diameter bulb and controls the heating cycle within the 245F to 375F temperature range. The temperature detected by the bulb travels through the 30-inch capillary tube to the thermostat mechanism, where the heating operation responds to the selected setting. The 9-7/8-inch bulb is positioned in the designated sensing area of compatible cooking equipment, while the control assembly connects to the appliance's temperature circuit. The K-type configuration incorporates the specified bulb size, capillary length, and operating range for compatible commercial cooking applications.
Dimensions
- Length: 10.75 In
- Width: 2.75 In
- Height: 2.375 In
- Weight: 0.6 lbs
Product Notes
- Thermostat, [ Type - Ea 3 ] [ Temp 250-400 ]
- [ Bulb 5/16" X 9-7/8" ] [ Cap 30" ] [ Mount 1]
- [ Stuff Box 1/4" Mpt X 5/16" Cct ]
- [ For Pointer Dial Use # 22-1189 ]
- White Plastic Indicator Knob, Old Style Was Chrome.
- [ 2" Dia ] [ Pointer] [Mount .187" D-Stem ] [Position * ,
- *Flat At 2:00, Color Is Off-White Vanilla,
- For Pointer Knob W/Flat @ 10:00 Use # 22-1409
- If Dial Plate Is Needed Order # 22-1190
- Keating Fryer Bb & Most Gas Fryers.
- 14Ifm,18Ifm,20Ifm,Incredible Frying Machine,Incredible
- Frying Machine Pre 2000
