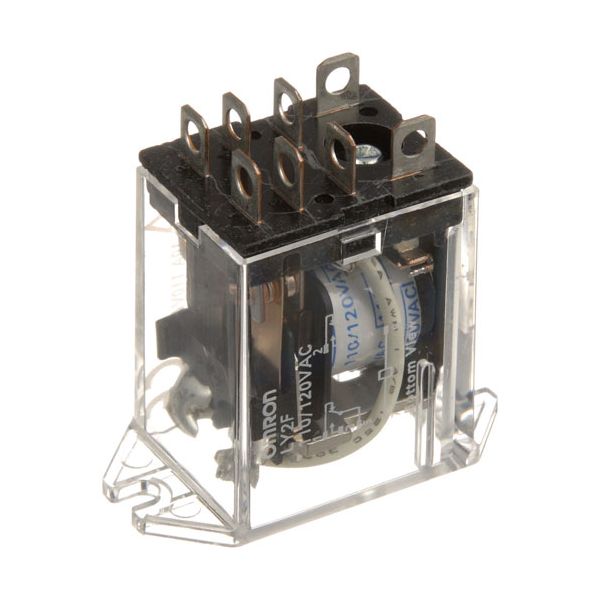

main product photo

Vulcan Hart 00-416535-00006 Fryer Relay 10A 110/120V

Be the first to review this product
Special Price $73.22 Regular Price $112.81
In stock
SKU
00-416535-00006
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Vulcan Hart 00-416535-00006 Relay 10 AMPS 110/120V switches electrical power by opening or closing the internal contacts of the relay when the control circuit coil is activated. When a voltage is applied, the relay coil opens the input to the output to enable the flow of current to the controlled component. The contacts are open to terminate the flow. It is installed in the electrical compartment of the equipment and is incorporated into the control wiring where circuits have to be switched. This relay is designed to replace the one that starts to fail in connecting and disconnecting during normal operation.

Dimensions

  • Length: 1.75 In
  • Width: 1 In
  • Height: 1.75 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-416535-00006-relay-10-amps-110-120v-76527-2.jpg

Product Notes

  • Relay, [10 Amps] [110/120V ] [ 8Ea 3/16" Male Terminals]
  • [1-1/2" Mt Ctrs ] [Omron ] Note: For 240V Use # 44-1435.
  • Vulcan Fryer Series Er, Erc225, Erc225F, Erc40, Erc40F,
  • Erc50, Erc50F, Erc85, Erc85F, Erd225, Erd225F, Erd40,
  • Erd40F, Erd50, Erd50F, Erd85, Erd85F,
  • Oven Sg4C, Sg4D, Sg6C, Sg6D, Vc4Gc, Vc4Gd, Vc4Gs, Vc6Gc,
  • Vc6Gd, Vc6Gs,
  • Convection Steamer C24Ga10, C24Ga6,
HOSHIZAKI:
406132-07, HOS406132-07
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-416535-00006 Fryer Relay 10A 110/120V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 00-416535-00006 Relay?

Inspect all connections for tightness and signs of corrosion. Clean the surrounding grease and dust from the relay housing. Test relay actuation with appliance power off.

What are common issues with the Vulcan Hart 00-416535-00006 Relay?

  • Burner elements fail to energize.
  • Buzzing without switching.
  • Loose or frayed wiring.
  • Overheating during extended operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Power off the appliance completely before starting.

Step2: Remove the old relay by disconnecting all wires and unscrewing any mounting brackets.

Step3: Match and connect wires from the new relay to the corresponding terminals.

Step4: Secure the relay in place using screws or clips provided.

Step5: Check all connections for tightness and correct placement.

Step6: Restore power and test the appliance to ensure proper operation.
