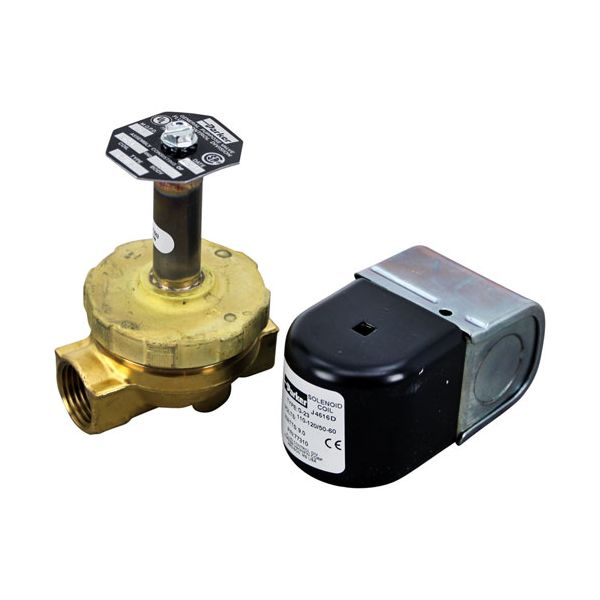

Controls incoming water flow during programmed dishwasher operations. The CMA Dishmachines 03603.10 Solenoid Valve operates as an electrically controlled valve that opens and closes the water passage in response to signals from the dishwasher control system. It manages incoming water during programmed stages of the operating cycle. The 1/2" connection and 110/120V rating define its specified plumbing and electrical configuration. Proper valve operation supports controlled water entry during dishwasher operation.
Water Flow Control:
The solenoid valve opens when energized by the control system, allowing water to enter the designated section of the dishwasher. When the electrical signal stops, the valve closes to interrupt water flow. This controlled opening and closing helps regulate water entry during programmed fill operations.
Valve Actuation:
The solenoid valve uses an electromagnetic mechanism to control the internal water passage. When the dishwasher control system sends the electrical signal, the solenoid creates magnetic force that moves the internal valve mechanism into the open position, allowing water to pass through. When the signal is removed, the mechanism returns to its closed position and stops the water flow. Consistent actuation is important for maintaining the correct timing of water entry during programmed dishwasher cycles.
Replacement Guidelines:
Replace the 03603.10 Solenoid Valve if it is damaged, cracked, corroded, leaking, or no longer provides proper flow control. The part number 03603.10, 1/2" connection size, and 110/120V electrical specification should be verified before replacement to ensure the correct solenoid valve is selected. Replace the valve if deterioration affects flow control, valve operation, connection integrity, or normal dish machine operation.
Common Failure Symptoms:
- Fluid flow does not respond normally to the control signal.
- Flow becomes intermittent or inconsistent.
- Valve remains open or closed when the equipment sequence calls for a different position.
- Solenoid assembly shows visible physical damage.
- Fluid delivery through the valve becomes restricted or interrupted.
Equipment Compatibility:
The CMA Dishmachines 03603.10 Solenoid Valve is intended for compatible commercial dishwasher applications requiring a 1/2" water connection and 110/120V electrical configuration.
Technical Specifications:
Brand: CMA Dishmachines
Part Number: 03603.10
Component Name: Solenoid Valve
Connection Size: 1/2"
Voltage Rating: 110/120V
