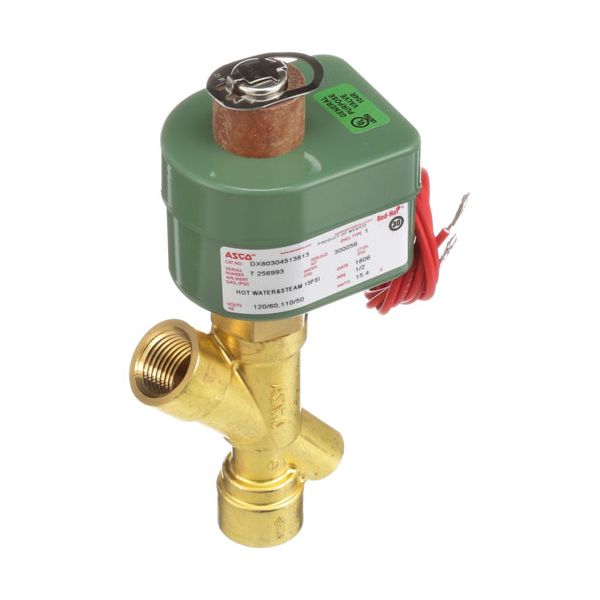

Cleveland 22244 Steamer Drain Solenoid Valve 250°F 15 PSI 1/2" FPT

A fluid control solenoid valve used in commercial steamers and boiler systems, this component regulates hot water and steam discharge with precise electrical actuation. It operates on a 110/120V coil and is rated for up to 250°F and 15 PSI, featuring a 1/2" FPT connection with a 45-degree angled body design for efficient installation in compact drainage lines. The normally open configuration allows controlled flow management, ensuring proper system drainage during operational cycles. In commercial cooking and steam generation equipment, consistent drainage is essential for maintaining safe pressure levels and stable performance. This valve helps manage condensate and excess water flow, preventing pressure buildup and supporting efficient thermal operation. If an existing solenoid becomes clogged or fails to actuate correctly, replacing it helps restore proper drainage function, improving equipment reliability in high-demand kitchens, institutional cooking systems, and boiler-fed steam units.

Equipment Compatibility:
Installed for Cleveland Steamer Drain Solenoid Valve systems, including commercial steamers, boiler units, and convection steam cooking equipment. This Drain Solenoid Valve 22244 is compatible with commercial equipment from leading brands such as Cleveland, Groen, Cleveland Range systems, Steamcraft, and more, where controlled hot water and steam drainage is required for reliable operation.

Brand Compatibility:
Replaces drain solenoid valve components associated with Cleveland and Groen equipment. Complete cross-reference details are provided separately.

Product Specifications:
Product Type: Drain Solenoid Valve
Manufacturer: Cleveland
SKU: 22244
Connection Size: 1/2" FPT
Voltage: 110/120V
Temperature Rating: 250°F
Pressure Rating: 15 PSI
Configuration: Normally Open (N/O)
Body Design: 45-degree angled valve

Key Features:

• Electrically actuated solenoid design ensures controlled opening and closing for efficient steam and hot water drainage.
• Rated for 110/120V operation, providing a stable electrical response in commercial kitchen environments.
• Handles temperatures up to 250°F, supporting safe use in high-heat steam and boiler systems.
• 1/2" FPT threaded connection allows secure installation in standard drainage and fluid control lines.
• 45-degree angled body design helps simplify routing in compact equipment layouts.
• Helps maintain proper pressure balance by preventing buildup through controlled discharge cycles.

Technician Feedback:

"The solenoid valve restores proper steam and condensate discharge control.”
