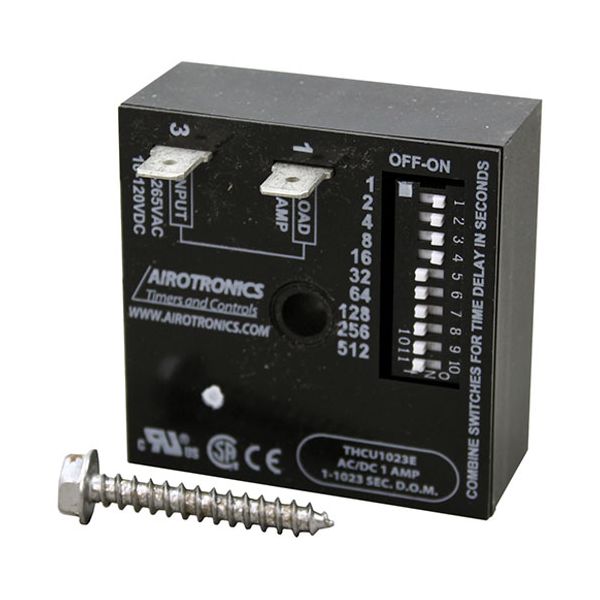

Ice-O-Matic 9101148-01 Ice machine Timer Module 1-1023 Sec

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $166.44 Regular Price $266.13
In stock
SKU
9101148-01
Add to Wish List
Ice Machine Parts, Defrost Timers,
Manufacturer:
The Ice-O-Matic 9101148-01 Ice Machine Timer Module functions to enhance ice machine performance. The timer module allows users to set precise ice-making cycles from 1 to 1023 seconds which leads to improved operational efficiency and decreased operational expenses. Users can replace this timer module as a dependable component for their C106, C135, C136 and various other ice machine models. The product installs easily which makes it ideal for fast maintenance tasks and system improvements. The product's durable construction coupled with reliable performance extends your ice machine's operational life which leads to better reliability.

Dimensions

  • Length: 2 In
  • Width: 2 In
  • Height: 1.5 In
  • Weight: 0.16 lbs
https://partsfe.com/media/catalog/product/i/c/ice-o-matic-9101148-01-ice-machine-timer-module-1-1023-sec-10784-2.jpg

Product Notes

  • Timer Module, 1-1023 Sec.
  • Ice-O-Matic C106, C135, C136, C185, C186, C20, C25, C30,
  • C35, C40, C45, C50, C61, C66, C81, Cf1106, Cf450, Cf800,
  • Ec1006, Ec1406, Ec1406B2, Ec1806, Ec1806B2, Ec2106B1, Ec806,
  • Emf1106, Emf2306, Emf450, Emf800, F/Mf1008, F/Mf700, F250,
  • Gc300, Gc305, Gc550, Gc555, Ice0250, Ice0250A, Ice0250W,
  • Ice0305, Ice0305A, Ice0305W, Ice0320, Ice0325, Ice0400,
  • Ice0400A, Ice0400W, Ice0405, Ice0405A, Ice0405W, Ice0406,
  • Ice0406A, Ice0406W, Ice0500, Ice0500A, Ice0500R, Ice0500W,
  • Ice0520, Ice0525, Ice0605, Ice0605A, Ice0605R, Ice0605W,
  • Ice0606, Ice0606A, Ice0606R, Ice0606W, Ice0805, Ice0806,
  • Ice0806-A, Ice1005, Ice1006, Ice1007, Ice1405, Ice1405A,
  • Ice1405A3, Ice1405R, Ice1405R3, Ice1405W, Ice1405W3,
  • Ice1406, Ice1406A, Ice1406A3, Ice1406R, Ice1406R3, Ice1406W,
  • Ice1406W3, Ice1407, Ice1407A, Ice1407A3, Ice1407R,
Controls the timing of specific electrical operations during the ice-making process. The Ice-O-Matic 9101148-01 Timer Module provides adjustable timing from 1 to 1023 seconds, allowing connected control circuits to activate or remain operational for defined periods. It sends timed electrical signals to associated components as the machine progresses through its programmed sequence. This timing function helps coordinate individual stages of the ice-making process. Accurate timer operation supports consistent cycle progression and synchronization between connected electrical components.

Signal Processing:
Processes timing-related electrical inputs and determines when output signals should be delivered to connected control circuits. The module uses the selected timing interval to initiate or interrupt electrical signals at specific points in the operating sequence. Consistent signal processing helps coordinate components that depend on precise timing and supports orderly transitions between controlled operations. Electrical connections, control inputs, and output circuits work together to maintain the programmed timing sequence.

Timing Adjustment:
The operating duration of a controlled function to be established within the module's specified range. The selected interval determines how long the associated electrical operation remains active or when the next timed signal is initiated. Accurate adjustment helps synchronize time-dependent components and maintain consistent operating intervals throughout the programmed sequence.

Replacement Guidelines:
Replacement of the Ice Machine Timer Module if it is damaged, unresponsive, operates inconsistently, or no longer provides reliable timing control. The part number 9101148-01 and 1-1023 SEC timing range should be verified before replacement to ensure the correct timer module is selected. Replace the timer module if deterioration affects timing accuracy, control response, electrical connection, or normal ice machine operation.

Common Failure Symptoms:

  • Timed equipment functions do not occur at the expected intervals.
  • Timing becomes inconsistent between operating cycles.
  • A controlled stage begins or ends prematurely.
  • A controlled stage remains active longer than expected.
  • The timer module shows visible physical damage.

Equipment Compatibility :
Before purchasing, match Ice-O-Matic 9101148-01 with the ice machine's documented timer-module requirements. Confirm the 1–1023 second timing range and part number correspond to the required control configuration.

Technical Specifications:
Brand: Ice-O-Matic
Part Number: 9101148-01
Component Name: Timer Module
Timing Range: 1–1023 SEC
Appliance Type: Commercial Ice Machine

Replaces Parts
ICE-O-MATIC:
Reviews 5
Write Your Own Review
You're reviewing:Ice-O-Matic 9101148-01 Ice machine Timer Module 1-1023 Sec
Your Rating
Related Posts
  1. Commercial Ice Machines Buyer’s Guide 2026: Types, Sizes, Costs & Pro Tips Explained
FAQS
Customer Questions
What are the Components of an Ice Machine?

An ice machine is a device that produces and stores ice. It is used by people who wish to have cold drinks or food at home, or by those who wish to have cold storage for their Refrigerators Parts. ParstFe is your one stop solution for Manitowoc, Scotsman...

Read More
How Do You Replace a Refrigerator Defrost Timer?

When you feel the cooling is not enough in your fridge though you have set the correct timer for required cooling it is time to change your fridge timer. It is easy and all you will need is a putty knife, a quarter-inch nut driver, a small flat blade...

Read More
What maintenance is required for the Ice-O-Matic 9101148-01 Timer Module?

Inspect wiring connections and terminals regularly to ensure they are secure and free from corrosion. Keep the control box clean and dry to prevent electrical damage. During routine ice machine servicing, verify proper cycle timing. Always disconnect power before handling electrical components. The module controls timing cycles in ICE series cubers, so stable connections are essential for accurate operation.

What are common issues with the Ice-O-Matic 9101148-01 Timer Module?

  • Timer failing to start or stop ice cycles
  • Inconsistent timing intervals
  • Electrical connection faults
  • Module not responding to control inputs.

What is the function of the Ice-O-Matic 9101148-01 Timer Module?

It controls the timing of selected electrical functions during different stages of the ice-making cycle.

How can a faulty timer affect machine operation?

Incorrect timing can cause delays, interruptions, or improper sequencing of time-controlled functions.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Power off and unplug the ice machine before starting.

Step2: Remove the access panel to locate the existing timer module.

Step3: Carefully disconnect all wires from the old module, noting their positions.

Step4: Mount the new module securely in place.

Step5: Reconnect all wires correctly, ensuring firm connections.

Step6: Replace the access panel and plug in the machine.

Step7: Test the ice machine to verify proper timing operation.
