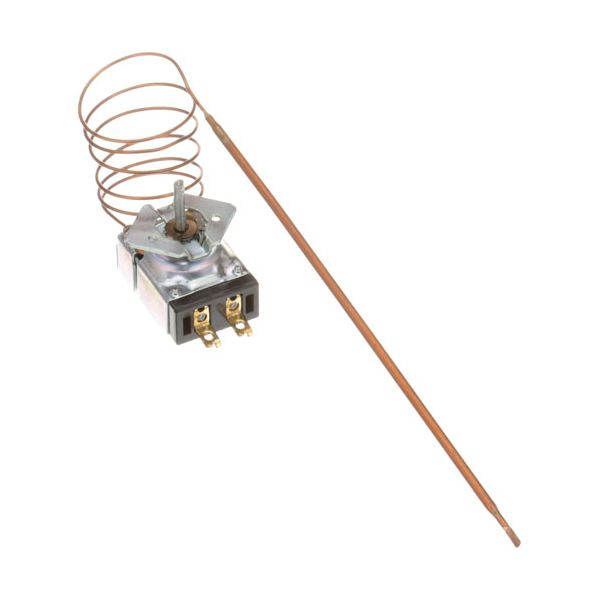

Hobart XNC8X67 Temperature Thermostat 200-450° Pitch 3/16" X 10" 36" CAP SP
Special Price $109.61 Regular Price $168.89
In stock
SKU
XNC8X67
Manufacturer:
The Hobart XNC8X67 Temperature Thermostat senses heat through its 3/16-inch diameter bulb and regulates the heating cycle across the 200F to 450F temperature range. Temperature changes detected at the sensing bulb travel through the 36-inch capillary tube to the control mechanism, which responds to the selected setting. The 10-inch bulb is positioned at the designated sensing location within compatible equipment, while the control assembly connects to the appliance's temperature circuit. Its SP configuration incorporates the specified pitch, bulb dimensions, capillary length, and operating range for compatible commercial equipment requiring this type of temperature control part.
Dimensions
- Length: 10 In
- Width: 3 In
- Height: 2.5 In
- Weight: 0.5 lbs
Product Notes
- T'Stat
- [ Type - S ] [ Temp 200-450 ] [ Bulb 3/16" X 10" ]
- [ Cap 36" ] [ Mount 5 Off-Set Horizontal ]
- [ Dial A1102, # 22-1088 ] [ 2-1/4" Dia ] [ Off-400-200]
- [Mount D-Stem .187" ] [Flat Up ]
- Ge/Hobart Grill Series: Cg (Except Cg33B, Cg700, Cg800), Hg
- (Except Hgs)
- Vulcan Grill Heg24, 365, 36D, 48D, 60D, 72D
