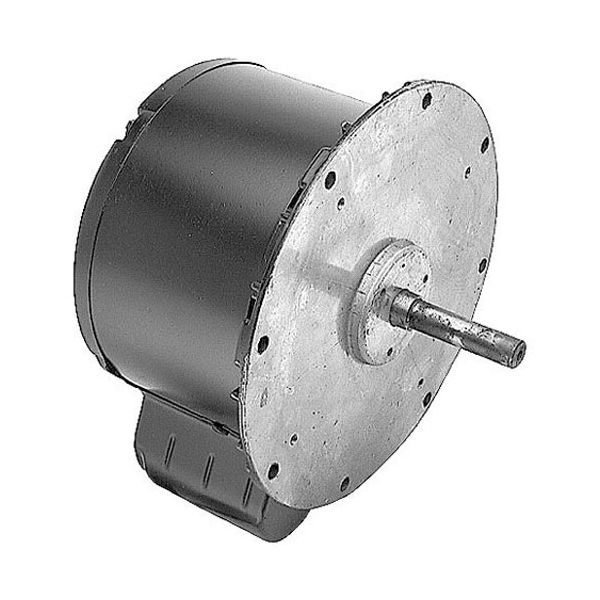

Hobart 00-411205-00005 Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V
Special Price $217.20 Regular Price $262.96
In stock
SKU
00-411205-00005
Manufacturer:
The Hobart 00-411205-00005 Motor W/Shaft is an electric drive part for compatible commercial foodservice equipment. It is rated at 1/2 hp, 1725 RPM, clockwise and provides mechanical motion from electrical energy to drive connected drive assemblies. A built-in shaft is used to directly transmit the rotation force to the connected components so that the equipment can carry out the mechanical role it is designed for. It was placed in the motor compartment and linked to the drive system. It is designed to supply a constant voltage to the equipment to ensure smooth running of moving parts in commercial kitchens, food processing, and foodservice facilities.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
