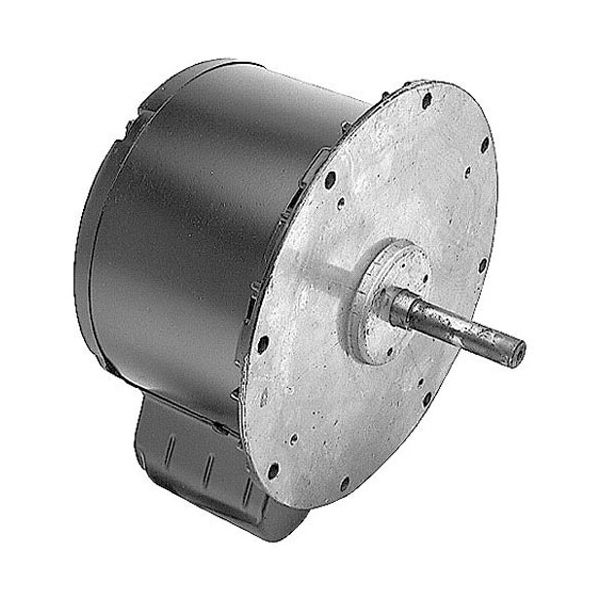

Bakers Pride BKPM1087A Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V
Special Price $217.20 Regular Price $262.96
In stock
SKU
BKPM1087A
Manufacturer:
The Bakers Pride BKPM1087A Motor W/Shaft is an electric motor assembly that fits commercial cooking equipment. It is designed to run at 1/2 horsepower and 1725 RPM, with clockwise shaft rotation, providing mechanical power to drive connected drive components. The motor converts electrical energy to continuous rotation and transmits power via the built-in shaft to the mechanical system of the equipment. It is mounted in the motor compartment of the system and attached to the drive assembly. It operates as part of the equipment that assists in reliable internal movement of the parts that are used in the preparation of food in restaurants and commercial kitchen settings.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- 115/230V, 1/2Hp, 1Ph 1725 Rpm 8.0/4.0A
- Cw Rotation 5/8" X 2-7/8" Shaft .
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
