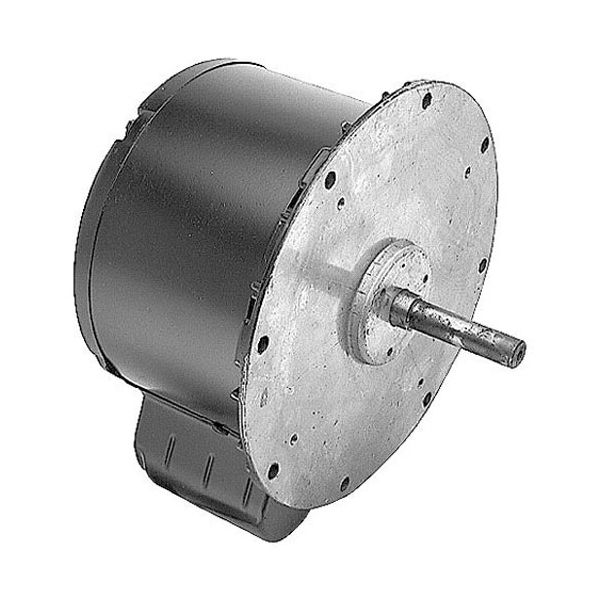

Bakers Pride BKPM1185X Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V
Special Price $217.20 Regular Price $262.96
In stock
SKU
BKPM1185X
Manufacturer:
The Bakers Pride BKPM1185X Motor W/Shaft transforms electrical input into rotational force that powers connected mechanical assemblies within commercial food service equipment. Its internal electromagnetic system generates torque, causing the rotor to spin and deliver clockwise motion through the output shaft for the operation of attached drive components. Operating on 115/230-volt single-phase power, this unit produces 1/2 horsepower at a speed of 1725 RPM. The motor is installed within compatible equipment frameworks, where its 5/8-inch by 2-7/8-inch shaft connects with transmission elements responsible for carrying out the machine's movement-driven operation.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- 115/230V, 1/2Hp, 1Ph 1725 Rpm 8.0/4.0A
- Cw Rotation 5/8" X 2-7/8" Shaft .
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
