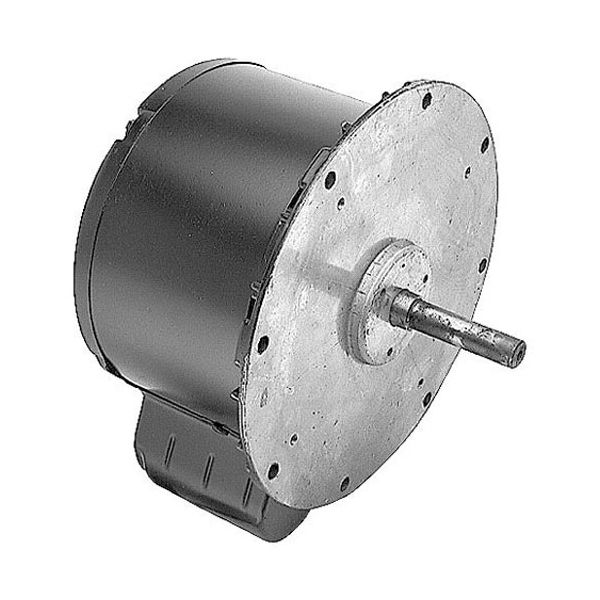

Hobart 411205-5 Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V
Special Price $217.20 Regular Price $262.96
In stock
SKU
411205-5
Manufacturer:
The Hobart 411205-5 Motor W/Shaft creates shaft-driven motion through an electromagnetic process that converts single-phase electrical input into continuous mechanical rotation. The internal rotor turns in a clockwise direction, transmitting torque through the output shaft to connected drive assemblies and equipment mechanisms. Featuring a 1/2-horsepower rating a 1725 RPM operating speed, and a 5/8-inch by 2-7/8-inch shaft this motor is configured for 115/230-volt applications. It is mounted within compatible machinery, where it connects with electrical supply lines, support brackets and motion-transfer components that form part of the equipment's power system.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
