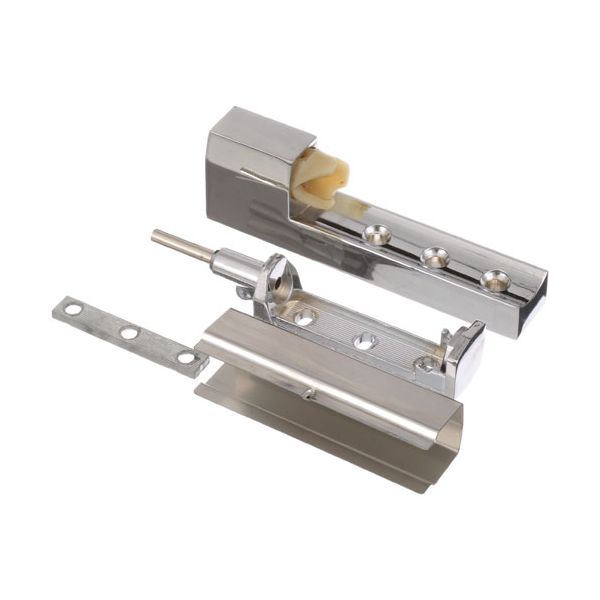

Hobart 00-436057-00022 Edgemount Cam Lift Hinge

Be the first to review this product
$18.22
In stock
SKU
00-436057-00022
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Hobart 00-436057-00022 Edgemount Cam Lift Hinge is a door hinge that is utilized in commercial foodservice equipment. It assists in the controlled movement of the door by lifting the door a bit as it is opened to aid in reducing wear and keeping it in position. The cam lift mechanism is installed on the door edge and the cabinet interface, making it easy to open and close normally. This hinge has a functional purpose in the door assembly because it assists in the correct positioning and constant contact between the door and the frame.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.92 lbs
https://partsfe.com/media/catalog/product/h/o/hobart-00-436057-00022-edgemount-cam-lift-hinge-27439-2.jpg

Product Notes

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
BEVERAGE AIR:
00C34-031D-01, 00C34031D01, 401-239B, 401-657B, 401657B, BEV401-239B, BEV401-657B
FOGEL:
HUSSMANN:
Reviews
Write Your Own Review
You're reviewing:Hobart 00-436057-00022 Edgemount Cam Lift Hinge
Your Rating
FAQS
Customer Questions
What maintenance is required for the Hobart 00-436057-00022 Cam Lift Hinge?

Keep hinge and cam mechanism clean and free of grease buildup and debris. Lubricate moving parts regularly with food-safe lubricant. Check mounting screws for tightness and alignment. Inspect for wear or binding during operation.

What are common issues with the Hobart 00-436057-00022 Cam Lift Hinge?

  • Cam wear causing loose or stiff movement.
  • Misalignment leading to uneven door closure.
  • Screw loosening over time.
  • Corrosion or rust on hinge components.
  • Binding due to debris accumulation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and support door/lid to prevent accidental drop or injury during handling.

Step2: Remove the existing hinge by loosening and detaching mounting screws carefully.

Step3: Position new cam lift hinge on edgemount bracket and align mounting holes.

Step4: Secure hinge loosely, then adjust cam for proper lift action and alignment.

Step5: Tighten all fasteners to specified torque.

Step6: Test full opening and closing cycle for smooth, safe operation before use.
