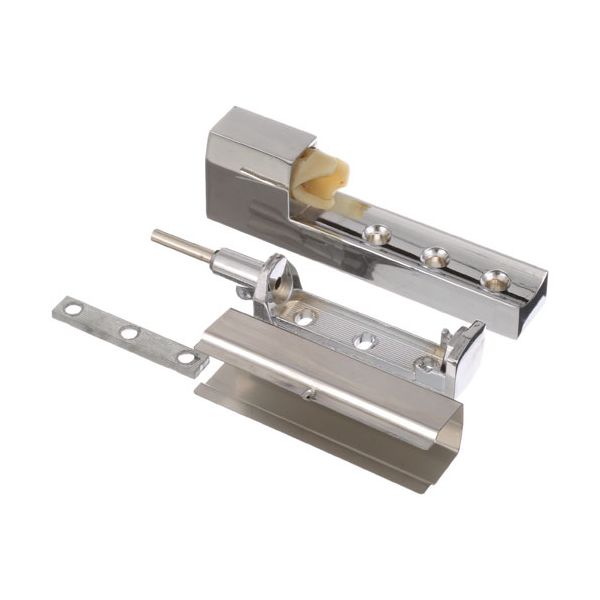

Delfield 323-4617 Edgemount Cam Lift Hinge

Be the first to review this product
$18.22
In stock
SKU
323-4617
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 323-4617 Edgemount Cam Lift Hinge is a door placement element designed to fit the refrigeration units. It is a cam-assisted movement to raise and close the door to assist in correct positioning and closing. The hinge is mounted at the edge of the cabinet and it works together with the door assembly to ensure that there is a straight seal and controlled movement. It is used in commercial kitchens to deal with the pressure of opening and closing the door repeatedly, allowing the refrigeration system to keep the internal conditions steady in normal operation.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.92 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-323-4617-edgemount-cam-lift-hinge-34839-2.jpg

Product Notes

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
BEVERAGE AIR:
00C34-031D-01, 00C34031D01, 401-239B, 401-657B, 401657B, BEV401-239B, BEV401-657B
FOGEL:
HUSSMANN:
Reviews
Write Your Own Review
You're reviewing:Delfield 323-4617 Edgemount Cam Lift Hinge
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 323-4617 Cam Lift Hinge?

Regularly inspect the hinge for wear, looseness, and smooth cam action. Clean debris and food buildup to prevent binding. Lightly lubricate moving parts to ensure smooth door operation and reduce friction-related pressure on mounting points.

What are common issues with the Delfield 323-4617 Cam Lift Hinge?

  • Loose hinge causing door misalignment.
  • Cam wear leading to uneven lifting action.
  • Rust or corrosion from moisture exposure.
  • Binding due to debris buildup.
  • Mounting screw loosening over time.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Align hinge mounting plate with cabinet edge and mark screw points.

Step2: Pre-drill pilot holes carefully; avoid splitting wood or panel material.

Step3: Secure hinge using appropriate screws, tightening evenly for stability.

Step4: Attach door or panel to hinge arm and test cam lift movement.

Step5: Ensure smooth operation; wear gloves and support panel during installation for safety.

Step6: Check alignment and adjust cam tension if needed.
