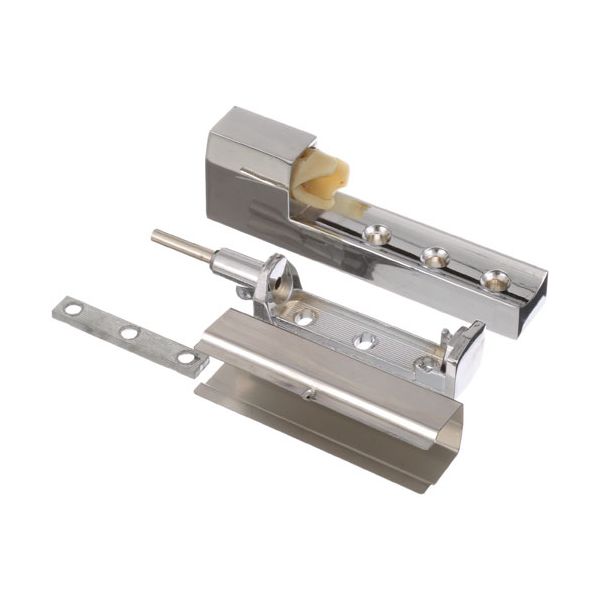

main product photo

Beverage Air 00C34031D01 Edgemount Cam Lift Hinge Chrome

Be the first to review this product
$18.22
In stock
SKU
00C34031D01
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Beverage Air 00C34031D01 Edgemount Cam Lift Hinge is a mechanical door hinge that is used to lift and direct the door when opening and closing. Its cam action will help in alignment and a secure seal when the door is closed to the closed position. It is fitted on the cabinet edge, and it is connected to the door system of the refrigeration unit to ensure that it moves smoothly with repeated use. In commercial foodservice, the hinge assists in maintaining consistency in the operation of the doors, maintaining internal temperatures, and also in ensuring equipment.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.92 lbs
https://partsfe.com/media/catalog/product/b/e/beverage-air-00c34031d01-edgemount-cam-lift-hinge-93603-2.jpg

Product Notes

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
BEVERAGE AIR:
00C34-031D-01, 00C34031D01, 401-239B, 401-657B, 401657B, BEV401-239B, BEV401-657B
FOGEL:
HUSSMANN:
Reviews
Write Your Own Review
You're reviewing:Beverage Air 00C34031D01 Edgemount Cam Lift Hinge Chrome
Your Rating
FAQS
Customer Questions
What maintenance is required for the Beverage Air 00C34031D01 Cam Lift Hinge?

Regularly inspect the hinge for wear, misalignment, or loosened mounting hardware. Lubricate moving parts with food-safe lubricant to ensure smooth operation. Clean debris buildup around the hinge area to prevent obstruction. Ensure proper door alignment to avoid strain and maintain safe, consistent performance.

What are common issues with the Beverage Air 00C34031D01 Cam Lift Hinge?

  • Door sagging or misalignment.
  • Hinge stiffness or restricted movement.
  • Unusual squeaking or grinding noises.
  • Loose or worn hinge components.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to appliance and empty door area before installation; wear gloves for safety.

Step2: Align edgemount cam lift hinge with mounting bracket on door frame, ensure correct orientation and alignment.

Step3: Secure hinge using manufacturer screws, tightening evenly to manufacturer torque specs to prevent misalignment.

Step4: Verify smooth cam lift movement and adjust alignment if needed, and confirm door balance.

Step5: Fully tighten all fasteners and test door opening and closing operation, and check for smooth cycling.
