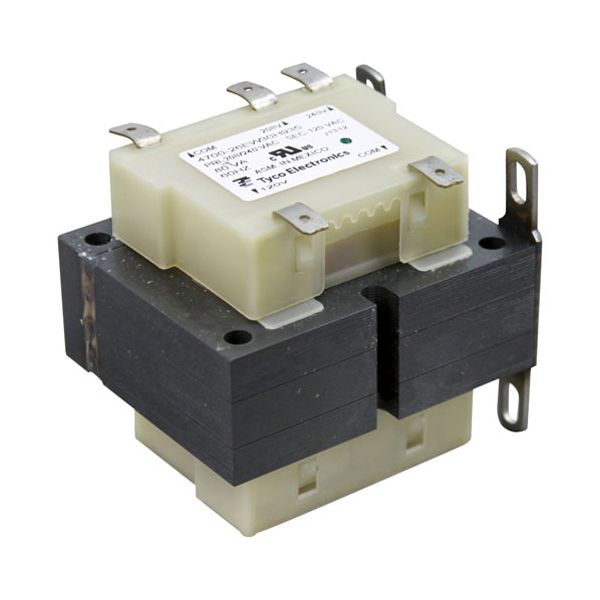

Hatco 02.17.004 Enclosed Transformer Coil 208/240V To 120V
Special Price $54.78 Regular Price $91.00
In stock
SKU
02.17.004
Manufacturer:
The Hatco 02.17.004 Enclosed Transformer Coil 208/240V To 120V is a type of electrical transformer that is an enclosed coil that is used to transform incoming power of 208/240V into 120V output to be utilised in control circuits and other auxiliary components of commercial equipment. It operates on both primary and secondary windings in a protective casing where the voltage is the desired level which is needed by downstream. This transformer coil is mounted into the electrical control compartment or panel of the appliance attached to the frame or a support bracket and line connections.
Dimensions
- Length: 3.25 In
- Width: 2.875 In
- Height: 2.625 In
- Weight: 3 lbs
Product Notes
- Transformer, Primary 208/240V, Secondary 120V, 80Va,
- Enclosed Coil, 4 Mount Holes 2-1/8" X 2-1/4",
- (5) 1/4" Tabs.
- Hatco
- C-12, C-13, C-15, C-17, C-18, C-24, C-27, C-30, C-39, C-4,
- C-45, C-5, C-54, C-58, C-6, C-7, C-9, S-12, S-13, S-15,
- S-17, S-18, S-24, S-27, S-30, S-36, S-39, S-40, S-45, S-54,
- S-57, S-58, S-6, S-9
