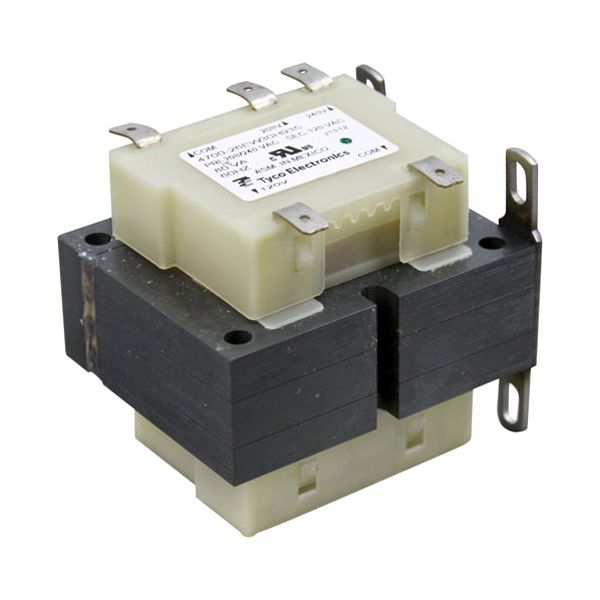

Hatco HT02.17.004.00 Enclosed Coil Transformer PRI 208/240V SEC 120V
Special Price $54.78 Regular Price $91.00
In stock
SKU
HT02.17.004.00
Manufacturer:
The Hatco HT02.17.004.00 Enclosed Coil Transformer is an electrical component that allows a reduction in incoming 208/240V to 120V to the equipment. It provides the low voltage needed to power the control boards, switches, indicator lights and other low-voltage circuits in the appliance. The enclosed four-hole mounting housing is intended to be mounted in the interior and installed in the electrical compartment with four holes, and is part of the power system in the unit. This transformer is used to keep the right voltage distribution and operation of standard equipment.
Dimensions
- Length: 3.25 In
- Width: 2.875 In
- Height: 2.625 In
- Weight: 3 lbs
Product Notes
- Transformer, Primary 208/240V, Secondary 120V, 80Va,
- Enclosed Coil, 4 Mount Holes 2-1/8" X 2-1/4",
- (5) 1/4" Tabs.
- Hatco
- C-12, C-13, C-15, C-17, C-18, C-24, C-27, C-30, C-39, C-4,
- C-45, C-5, C-54, C-58, C-6, C-7, C-9, S-12, S-13, S-15,
- S-17, S-18, S-24, S-27, S-30, S-36, S-39, S-40, S-45, S-54,
- S-57, S-58, S-6, S-9
