Toastmaster - See Middleby Marshall 1421B8703 Thermostat S-Type 200°F-400°F 3/8" X 5-1/8" Bulb 24" CAP
Special Price $233.62 Regular Price $359.97
Out of stock
SKU
1421B8703
Manufacturer:

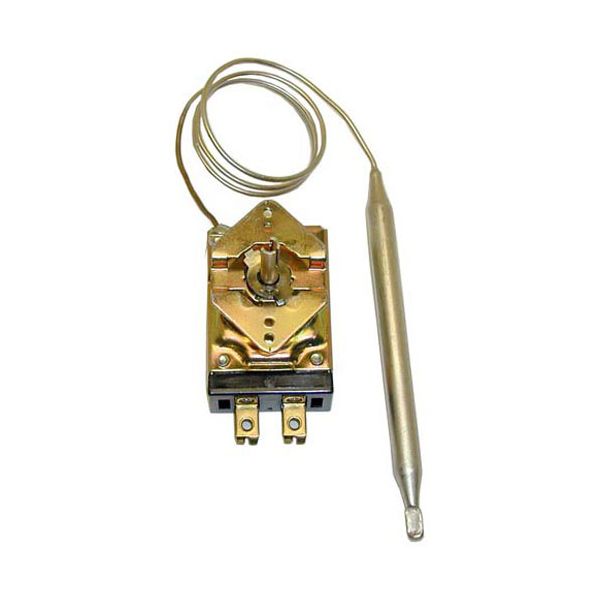

The Toastmaster - See Middleby Marshall 1421B8703 Thermostat S-Type controls temperature by sensing heat through its 3/8-inch x 5-1/8-inch bulb and opening or closing the electrical circuit to maintain the selected operating range. Designed for temperatures from 200°F to 400°F, it uses a 24-inch capillary to transmit temperature changes from the sensing bulb to the thermostat mechanism for responsive control. The thermostat is installed in compatible commercial cooking equipment, where the bulb is positioned within the heated area and the control mounts to the equipment panel as part of the temperature regulation system.
Dimensions
- Length: 7.5 In
- Width: 2.25 In
- Height: 2.5 In
- Weight: 0.5 lbs
Product Notes
- [ Type- S ] [ Temp 200-400 ] [ Bulb 3/8" X 5-1/8"
- Nickel ] [ Cap 24" ] [ Mount 1 ] [ Dial # 22-1197
- Off-400-250, Flat Right, Black W/White Print.
- Gen Use Dial # 22-1006 ] Off-400-200, 4-Way,
- Add-On Stuffing Box # 26-1152
- Nu-Vu
- Toastmaster
- Fryer Fry Kettle(208/240V): 1404E, 1414B, 1421, 1427, 1439,
- 1454.
- Super "T" Fry Kettle(Standard Only): Fr(29,48,50),
- Fryer Model Group A Thru G.
- Auto Fryer: 1403, 1439, 1422, 1433, 1435
