Hobart 350571-1 Thermostat KNP Stainless Steel 5/32" X 8-1/4"
Special Price $146.65 Regular Price $225.96
Out of stock
SKU
350571-1
Manufacturer:

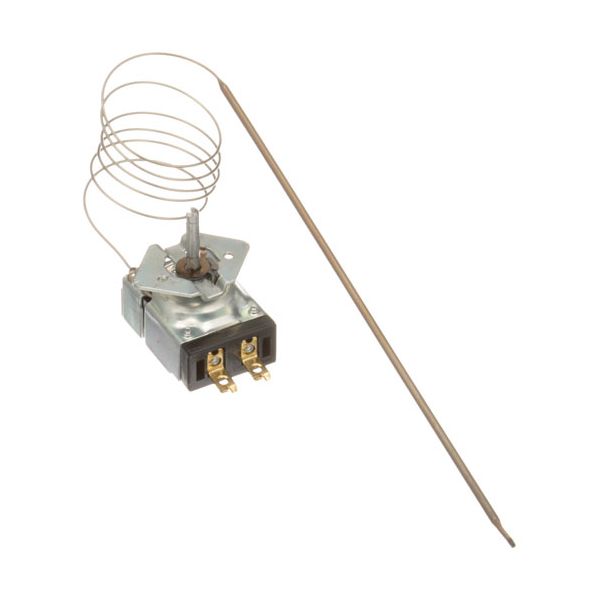

Hobart 350571-1 Thermostat KNP monitors the temperature of the equipment it is connected to and controls the heating circuit based on the set. The thermostat reacts to temperature variations with its sensing mechanism to regulate the electrical circuit to the heating system. It is installed in the equipment where the temperature is required to be monitored, and the sensing part is extended into the area to be monitored. The thermostat is made of stainless steel, 5/32" in diameter, and 8 1/4" long. The terminals are used to make connections with the corresponding control wiring that the temperature control circuit can react to the temperature difference caused by the sensing element in operation.
Dimensions
- Length: 12 In
- Width: 2.5 In
- Height: 1.75 In
- Weight: 0.35 lbs
Product Notes
- [ Type - Knp ] [ Temp 250-950 ] [ Bulb 5/32" X 8-1/4"
- Stainless] [ Cap 36" ] [ Mount 5 Off-Set Horizontal ]
- Positive Off.
- [ Dial # 22-1285, Knob, Black & Silver, [ 2-1/2"
- Dia ] [ Off-7-1] [Mount .187" ] [Position Up ]
- Ge/Hobart Range Cr40, Cr40B, Cr41, Cr41B, Cr44, Cr44B,
- Cr46,Cr46B, Cr47, Cr47B, Cr50, Cr50B, Cr52, Cr53, Cr56,
- Cr401.
