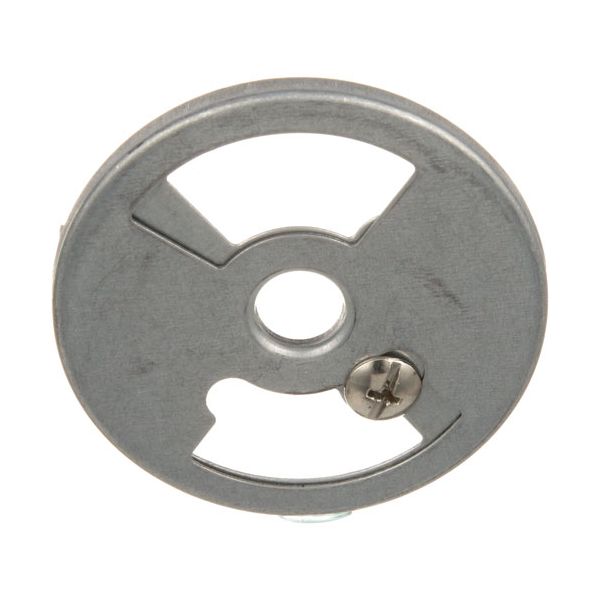

This burner air shutter contributes to controlling the balance of air/gas in commercial cooking equipment and precisely forms the flame. The outer diameter of the component is 2-3/4”. It is double plate with two slots for airflow control. It can be used with a 2-1/2 in. diameter burner and a 7/16 in. hole size, allowing air to enter the burner in the correct quantities for the optimum combustion. It is important to ensure the correct air mixture to produce a stable and uniform flame, ensuring consistent cooking results. This air shutter is normally found in commercial ranges, broilers, grills and ovens where burner control accuracy is important. The set position is secured by integrated locking ears which ensure reliable operation of the equipment in normal use without frequent adjustments.
Equipment Compatibility:
Primary uses for Montague Burner Air Shutter include commercial gas ranges, broilers, grills, and ovens used in restaurants, hotels, and foodservice kitchens where precise air-to-gas balance is required for stable burner performance and efficient combustion.
This Burner Air Shutter B25 is compatible with commercial equipment from leading brands such as Montague, Vulcan Hart, Garland, Hobart, Wolf, and Rankin Delux, and more, where controlled airflow adjustment is needed to maintain consistent flame quality and reliable burner operation.
Brand Compatibility:
This burner air shutter replaces multiple cross-reference components used in commercial burner systems across equipment lines from manufacturers such as Montague, Vulcan Hart, Hobart, Garland, Wolf, Rankin Delux, and other compatible foodservice equipment brands, where precise air-to-gas adjustment is required for stable burner performance. Complete cross-reference details are provided separately for accurate part identification and matching.
Product Specifications:
Product Type: Burner Air Shutter
Manufacturer: Montague
SKU: B25
Outer Diameter: 2-3/4"
Burner Compatibility: Fits 2-1/2" Diameter Burner
Hole Size: 7/16"
Construction: Double Plate with 2 Slots
Material: Cast Iron
Mounting: Locking Ears Included
Key Features:
- Double plate design with two slots allows better control over incoming air for proper flame formation.
- 2-3/4" outer diameter and 7/16" hole size ensure an accurate fit with compatible burners.
- Helps maintain an even flame by regulating the air-to-gas mixture inside the burner.
- Locking ears keeps the adjustment fixed, helping avoid unnecessary movement during operation.
- Supports smooth burner performance across various types of commercial cooking equipment.
Installation feedback often mentions improved flame stability and better air adjustment after replacing the air shutter.
