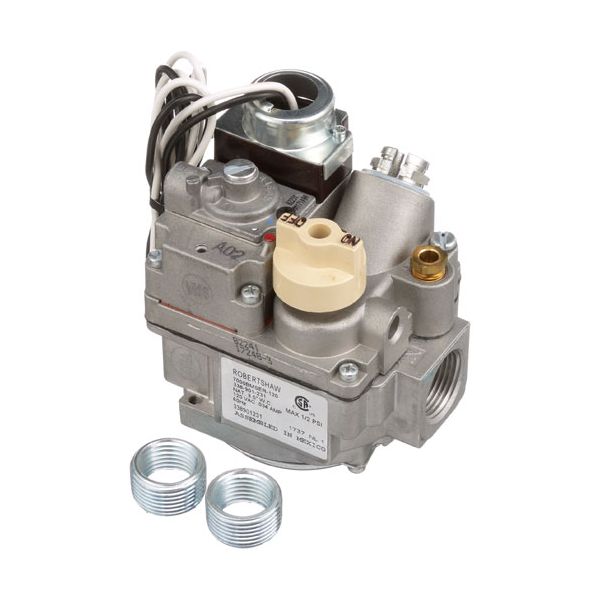

Frymaster FM806-1452SP Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out
Special Price $222.74 Regular Price $429.00
In stock
SKU
FM806-1452SP
Manufacturer:
The Frymaster FM806-1452SP Combination Safety Valve controls natural gas flow based on the operating conditions of the system with a 120 VAC powered mechanism that actuates the valve. It is used in conjunction with the controls of the equipment to allow or stop gas flow to the heating system as needed. The valve is installed in the gas train of the appliance which is between the gas source and the burner assembly. It is fitted with 3/4" FPT inlet and outlet ports and is a part of the system used to direct gas during operation through the cooking equipment.
Dimensions
- Length: 5.75 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 2.4 lbs
Product Notes
- Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
- 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
- W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
- Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
- 500Mv Under Load ,
- Thermopile, Push On, For Frymaster, # 51-1348.
- Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
- Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
- Kj3Fc,
- Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
- Models:24R, 18Wks, 14F
