Frymaster FM8070308 Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out
Special Price $222.74 Regular Price $429.00
In stock
SKU
FM8070308
Manufacturer:

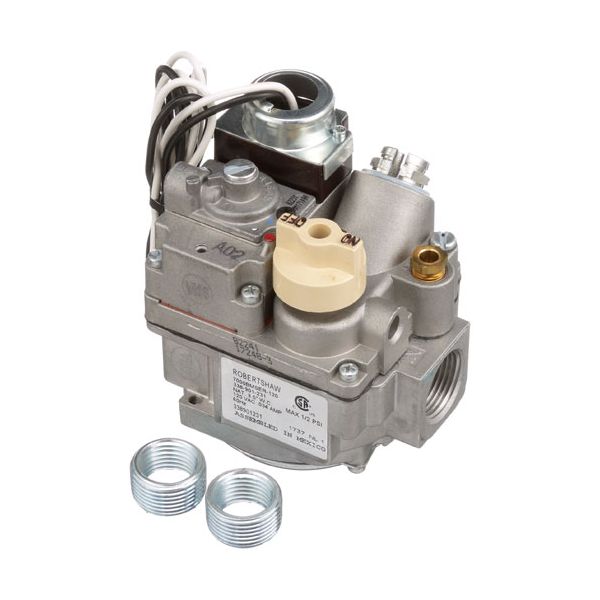

The Frymaster FM8070308 Combination Safety Valve controls gas flow by receiving a 120 VAC electrical signal to operate the valve and control fuel flow through the appliance. It operates in the gas control circuit and regulates the amount of natural gas fed to the burner system for heating. This part is fitted in the gas supply line of commercial systems which is placed between the gas supply connection and the burner assembly. It has a 3/4" FPT inlet and outlet that fit the specified gas piping equipment configuration.
Dimensions
- Length: 5.75 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 2.4 lbs
Product Notes
- Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
- 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
- W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
- Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
- 500Mv Under Load ,
- Thermopile, Push On, For Frymaster, # 51-1348.
- Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
- Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
- Kj3Fc,
- Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
- Models:24R, 18Wks, 14F
