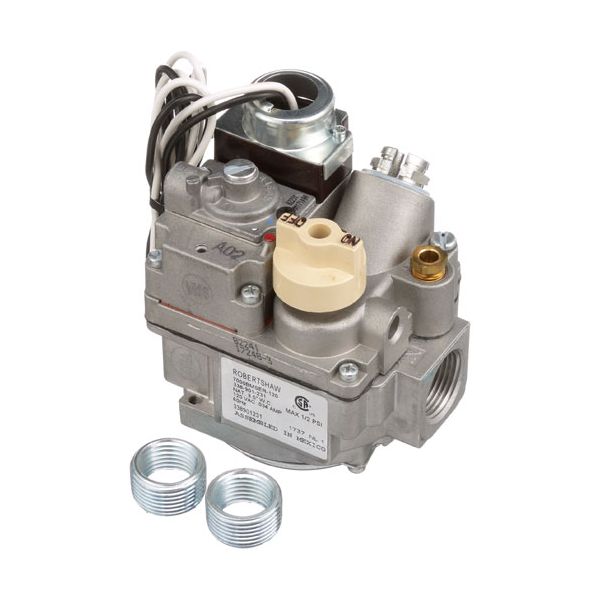

Frymaster FM807-0308 Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out
Special Price $222.74 Regular Price $429.00
In stock
SKU
FM807-0308
Manufacturer:
The Frymaster FM807-0308 Combination Safety Valve is a natural gas controller that is operated by an electrically activated valve assembly using 120 VAC power. It is controlled by the control system and will be used to turn the gas on or off to the burners during cooking cycles. The valve is typically part of the internal gas control system connecting the gas supply to the burner manifold. It is designed to fit into natural gas commercial frying equipment with 3/4" FPT inlet and outlet ports.
Dimensions
- Length: 5.75 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 2.4 lbs
Product Notes
- Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
- 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
- W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
- Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
- 500Mv Under Load ,
- Thermopile, Push On, For Frymaster, # 51-1348.
- Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
- Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
- Kj3Fc,
- Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
- Models:24R, 18Wks, 14F
