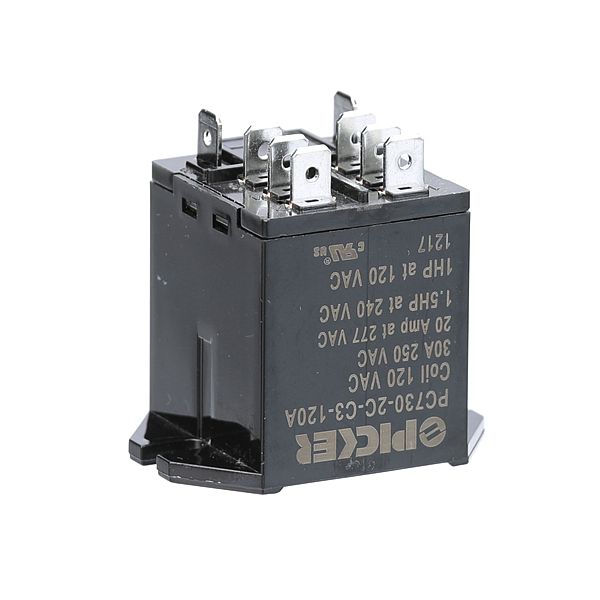

Vulcan Hart 00-843947 DPDT Relay 120V

Be the first to review this product
Special Price $301.37 Regular Price $346.40
Out of stock
SKU
00-843947
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Vulcan Hart 00-843947 DPDT Relay is a reliable double-pole, double-throw for an electrical circuit of 120V. This flexible component offers the ability to control the circuits in high-end kitchen appliances and enables smooth transitions between circuits. Designed to be rugged it provides for effective and safe use in commercial food service operations with minimal breakdown time. Its strong construction guarantees its long-term work in conditions that are as severe as possible, which makes it an indispensable component of maintaining the best performance and energy efficiency in commercial kitchens.

Dimensions

  • Length: 2 In
  • Width: 1.95 In
  • Height: 1.4 In
  • Weight: 0.5 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-843947-dpdt-relay-120v-56658-2.jpg
Manufacturer Name: Vulcan Hart
Product Number: 00-843947
OEM Part Number: 00-843947
Product Description: Relay, Dpdt, 120V
Similar Models:843947 - Hobart, 97-5991 - Market-Forge, 97-5992 - Market-Forge, 979079 - Market-Forge, 97-9079 - Market-Forge, 9-3174-1 - Southbend, 9-3175-1 - Southbend, 93321 - Southbend, 9332-1 - Southbend, 843947 - Vulcan-Hart
Dimensions:
Length:2in/5.08cm
Width:1.95in/4.95cm
Height:1.4in/3.56cm
Weight:0.5lbs/226.8g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Replaces Parts
CROWN STEAM:
MARKET FORGE:
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-843947 DPDT Relay 120V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 00-843947 Relay?

Inspect the relay periodically for signs of overheating, corrosion, or burnt contacts to ensure accurate switching. Tighten all terminal connections to prevent loose wiring and intermittent operation. Keep the relay clean and dry, and verify correct input to avoid coil stress or failure.

What are common issues with the Vulcan Hart 00-843947 Relay?

  • Relay not switching due to coil failure.
  • Pitted or welded contacts causing constant on/off state.
  • Intermittent operation from loose or corroded terminals.
  • Overheating leading to burnout or reduced performance.
  • Electrical noise or control signal failure affecting actuation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power at breaker and check zero voltage, using lockout/tagout procedure.

Step2: Remove access panel and label existing wiring connections, referencing wiring diagram.

Step3: Pull out old relay and match terminal layout safely.

Step4: Insert new relay securely into socket, ensuring proper alignment.

Step5: Reconnect wires as labeled and tighten.

Step6: Reassemble panel, restore power, test appliance operation safely and monitor initial cycle.
