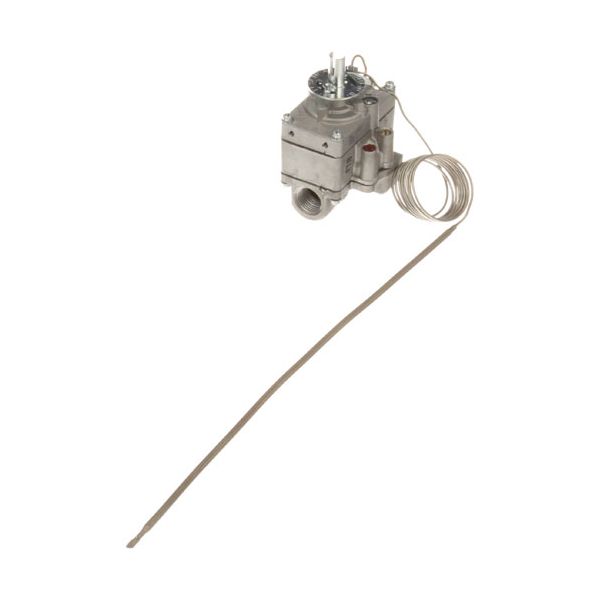

Lincoln 369006 Oven Thermostat 300°F-650°F FDTH-1
Special Price $204.19 Regular Price $581.67
In stock
SKU
369006
Manufacturer:
The Lincoln 369006 Oven Thermostat 300°F - 650°F FDTH-1 is an induction heating element that operates on a capillary tube and bulb assembly to measure internal temperatures in a commercial kitchen setting. When the heat rises or falls, the internal fluid expands or contracts to open or close electrical links in a mechanical way to keep the thermal setpoint of choice. This part is attached to the back of the operator panel, and the dial interface is directly attached to the heating shaft to be manually adjusted. It is the point of the regulator over the heat that remains constant throughout the continuous kitchen cycles.
Dimensions
- Length: 14.75 In
- Width: 1.75 In
- Height: 4.5 In
- Weight: 1.3 lbs
Product Notes
- [ Fdth-1 ] [ Temp 300-650 ] [ Bulb 3/16" X 14-3/4"
- Nickel ] [ Cap 48 ] [ Gas 1/2 Fpt In/Out,
- Gas In: (Side) F ] Gas Out: (Side) E
- [ Dial # 22-1011 (300-650) Black & Silver
- T'Stat Knob For Fd T'Stat, 4-Way Mount ]
- [Bakers Pride Dial # 22-1202 (300-650) Black
- Printed Dial For Fd T'Stat, Flat Down ]
- Note: The Bypass Screw Is Backed All The Way Out Allowing
- Gas To Flow In The Off Position. It Should Be Turned In And
- Then Adjusted For The Proper Bypass Flame.
