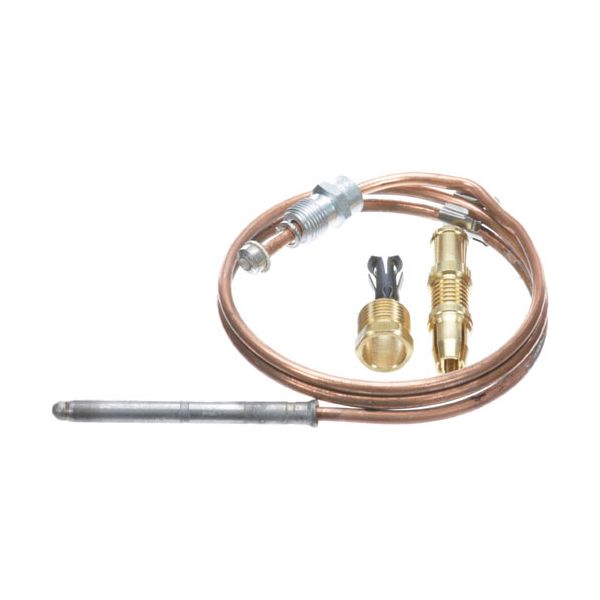

main product photo

Vulcan Hart VH20040 24" Thermocouple 20-30 MV

Be the first to review this product
Special Price $19.25 Regular Price $25.00
In stock
SKU
VH20040
Add to Wish List
Fryer Parts, Fryer Thermocouples, Shop by manufacturers
Manufacturer:
The Vulcan Hart VH20040 24" Thermocouple 20-30 MV is a flame detector element that is utilized in commercial kitchen equipment that uses gas power. It is mounted close to the pilot flame and produces a signal when hot and the gas valve can be left open whilst operating. This thermocouple is usually applied in ranges, oven and griddles where constant monitoring of pilots is required. When the flame is put out the signal is turned off and the flow of gas is automatically turned off.

Dimensions

  • Length: 5 In
  • Width: 4 In
  • Height: 0.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-vh20040-1980-series-snap-fit-24-thermocouple-20-30-mv-37026.jpg

Product Notes

  • 1980 Series Snap Fit 24" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets Grill Ss2436.
  • Dean Fryer Where Applicable
  • Dynamic Cooking Systems Oven Where Applicable.
  • Garland Broiler Model?
ANETS:
DUKE:
DYNAMIC COOKING SYSTEMS:
JADE RANGE:
KEATING:
4485, KEA4485, KEAP15239L, P15239L
METAL MASTERS:
PITCO:
STAR MFG:
STERO:
STA2J-Z4609, STAZ4609
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart VH20040 24" Thermocouple 20-30 MV
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart VH20040 Thermocouple?

Inspect the thermocouple for soot buildup or corrosion that may affect sensing accuracy. Ensure it is properly positioned in the pilot flame. Check wiring connections for tightness to maintain accurate flame detection and safety operation.

What are common issues with the Vulcan Hart VH20040 Thermocouple?

  • Pilot not staying lit.
  • Weak or failed flame sensing.
  • Corroded or damaged probe.
  • Loose electrical connection.
  • Intermittent safety shutdowns.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main gas supply and electrical power, allow appliance to cool completely.

Step2: Remove faulty thermocouple from pilot assembly carefully using proper tool.

Step3: Snap-fit new thermocouple into bracket securely until locked in place.

Step4: Connect lead to control valve terminal firmly, ensuring proper alignment.

Step5: Restore gas supply, relight pilot, and verify flame sensing operation.

Step6: Check for leaks with soapy solution and confirm proper shutdown response.
