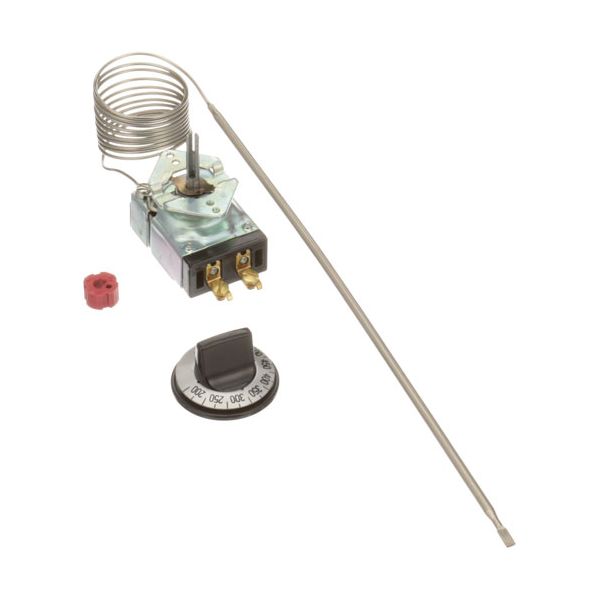

Southbend 1161452 Thermostat W/Dial Bulb 3/16" X 11-5/8" CAP 60" 175°F - 500°F KX
Special Price $265.45 Regular Price $508.53
In stock
SKU
1161452
Manufacturer:
The Southbend 1161452 Thermostat regulates heat by detecting temperature changes through, its sensing bulb, and signaling the control mechanism to cycle the heating source as needed. As the internal temperature rises or falls, the thermostat adjusts its operation to maintain the selected cooking setting throughout the heating process. It is installed in compatible commercial systems and other foodservice equipment, with the sensing bulb positioned inside the heated cavity and the control connected to the temperature adjustment dial. Featuring a 3/16-inch x 11-5/8-inch dial bulb, a 60-inch capillary tube, and a 175°F to 500°F operating range, it operates as part of the appliance's temperature control system.
Dimensions
- Length: 11.525 In
- Width: 0.188 In
- Height: 2 In
- Weight: 0.8 lbs
Product Notes
- Thermostat,
- Kxp, Temp 175-500, Bulb 3/16" X 11-5/8"
- Cap 60", Mount 1
- Dial Kit # 22-1128 Off-550-200 Insert (Closest We Have)
- If Oem Knob Is Preffered, Use Ap# 1661140
- Southbend Oven All Co Prefix Ovens~
- X10A.
- Series: V, Vs, X, Xs Gas Ovens, 300 Double Ovens.
- Platinum Series (Units With P Prefix)
