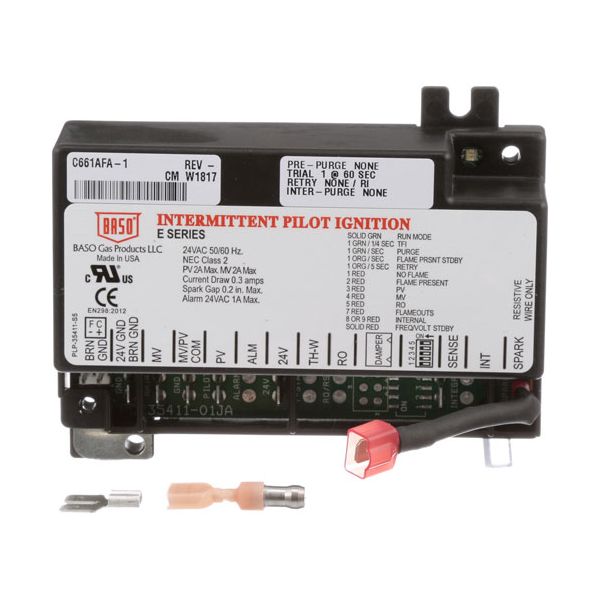

Garland 1516300 Griddle Ignition Control Box 24V
Special Price $151.11 Regular Price $320.15
In stock
SKU
1516300
Manufacturer:
The Garland 1516300 Ignition Control Box 24V is an electrical ignition control used with compatible commercial gas griddles. It is installed within the griddle control system where it manages the electrical sequence required for burner ignition. The control box receives signals from the equipment controls and operates the connected ignition circuit to initiate the burner lighting sequence. It works with the ignition electrode, gas controls, and safety circuit to coordinate fuel ignition during operation. The control box provides the electrical switching and timing required for the designated ignition process within the griddle system.
Dimensions
- Length: 3.125 In
- Width: 5.125 In
- Height: 7 In
- Weight: 0.62 lbs
Product Notes
- Black Baso Ignition Control Box.
- Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
- 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
- Old Spark Post Ignition Cable Use # 38-1339
- Includes Adaptor, Round Post To 1/4" Female Tab Term,
- # 85-1071.
- Garland Oven All Convection Ovens With Lp Gas & Electronic
- Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
- Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
- Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
- Foreign Units).
- Us Range Oven Sdg-1, Sdg-2 Lp Units
