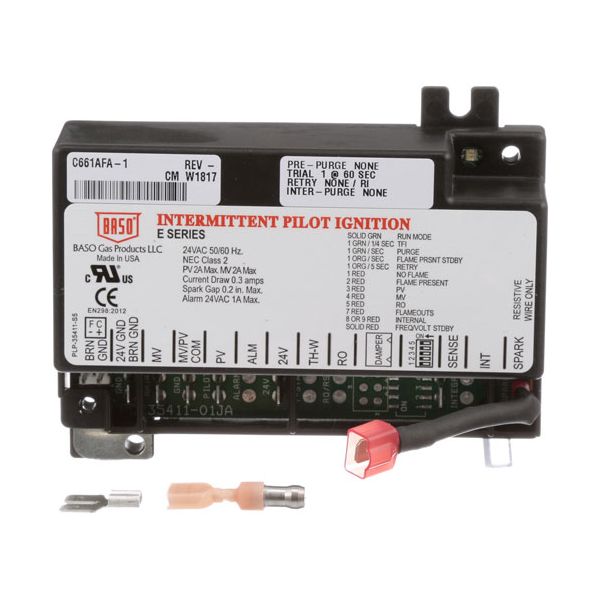

Garland 4602647 Range Ignition Control Box 24V, NAT/LP Gas

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $130.71 Regular Price $166.57
In stock
SKU
4602647
Add to Wish List
Electrical & Hardware, Power Supply/Power Cords, Shop by manufacturers
Manufacturer:
The Garland 4602647 Range Ignition Control Box 24V NAT/LP Gas functions by controlling the ignition sequence of natural or liquid propane gas ranges to maintain the operation of the burner. It works by regulating the time and delivery of electrical signals that trigger the flow of gas to ensure the same performance in the start-up and cooking process. This box is fitted in the control compartment of the range where it is interconnected to the burners and gas valves to ensure safe ignition.

Dimensions

  • Length: 3.125 In
  • Width: 5.125 In
  • Height: 7 In
  • Weight: 0.62 lbs
https://partsfe.com/media/catalog/product/g/a/garland-4602647-range-ignition-control-box-24v-nat-lp-gas-62743-2.jpg

Product Notes

  • Black Baso Ignition Control Box.
  • Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
  • 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
  • Old Spark Post Ignition Cable Use # 38-1339
  • Includes Adaptor, Round Post To 1/4" Female Tab Term,
  • # 85-1071.
  • Garland Oven All Convection Ovens With Lp Gas & Electronic
  • Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
  • Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
  • Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
  • Foreign Units).
  • Us Range Oven Sdg-1, Sdg-2 Lp Units
More Information
Disable SaleableNo
Replaces Parts
Reviews 2
Write Your Own Review
You're reviewing:Garland 4602647 Range Ignition Control Box 24V, NAT/LP Gas
Your Rating
FAQS
Customer Questions
What maintenance is required for the Garland 4602647 Ignition Control Box?

Keep the ignition control box clean and dry, free from grease or debris. Check electrical connections regularly for tightness and corrosion. Always disconnect power before inspection. Proper care ensures reliable ignition and safe operation.

What are common issues with the Garland 4602647 Ignition Control Box?

  • Ignition failure or weak spark.
  • Intermittent or inconsistent burner operation.
  • Faulty control signals causing error codes.
  • Malfunctions due to moisture or grease buildup.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off electrical power and gas supply to the range.

Step2: Open the control compartment and label all wire connections.

Step3: Disconnect the old ignition control box and remove mounting screws.

Step4: Install the new control box and reconnect wires to matching terminals.

Step5: Restore power and gas, then test ignition performance.
