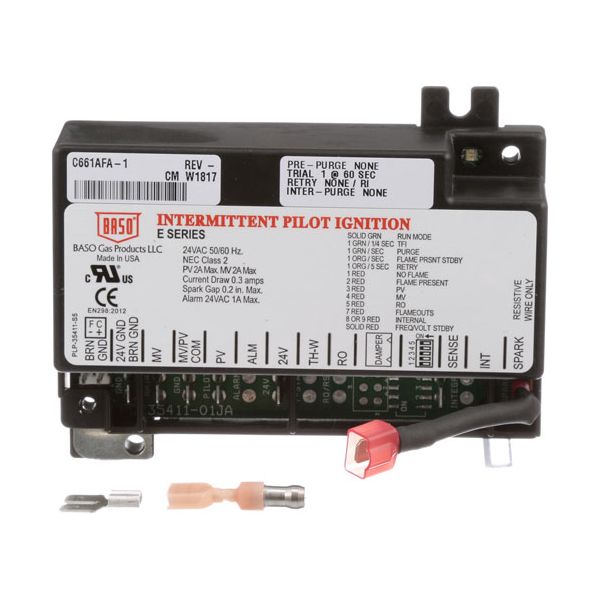

Garland 1781901 Griddle Ignition Control Box 24V
Special Price $151.11 Regular Price $320.15
In stock
SKU
1781901
Manufacturer:
The Garland 1781901 Ignition Control Box 24V is an electrical ignition control designed for compatible commercial gas griddles. It is installed within the griddle control assembly where it manages the electrical sequence associated with burner ignition. The control box receives input from the equipment controls and activates the connected ignition circuit according to the operating sequence. It works with the gas valve, ignition parts, and safety controls to coordinate burner startup. The control box provides the electrical control required to initiate and monitor the designated ignition process during normal griddle operation.
Dimensions
- Length: 3.125 In
- Width: 5.125 In
- Height: 7 In
- Weight: 0.62 lbs
Product Notes
- Black Baso Ignition Control Box.
- Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
- 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
- Old Spark Post Ignition Cable Use # 38-1339
- Includes Adaptor, Round Post To 1/4" Female Tab Term,
- # 85-1071.
- Garland Oven All Convection Ovens With Lp Gas & Electronic
- Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
- Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
- Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
- Foreign Units).
- Us Range Oven Sdg-1, Sdg-2 Lp Units
