Garland 4528856 Griddle Ignition Control Box 24V
Special Price $151.11 Regular Price $320.15
In stock
SKU
4528856
Manufacturer:

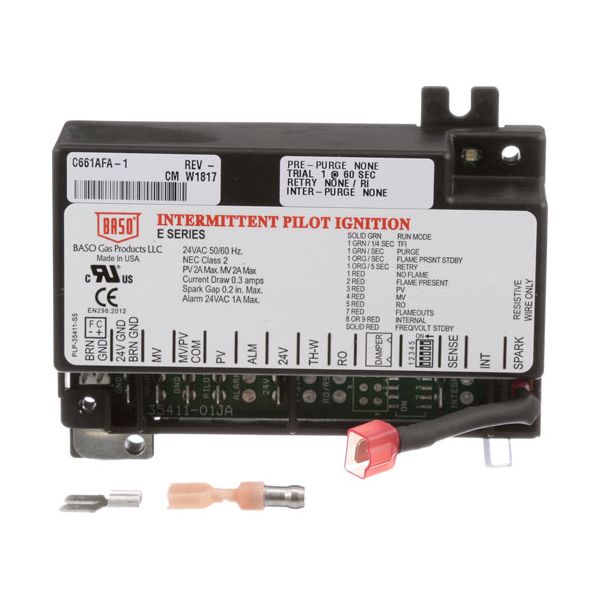

The Garland 4528856 Ignition Control Box 24V is an electrical control used within compatible commercial gas griddles. It is installed in the ignition control section where it manages the electrical sequence required to initiate burner ignition. The control box receives signals from the equipment control circuit and operates the connected ignition parts according to the programmed sequence. It works with the gas valve and safety controls to coordinate fuel delivery and ignition during burner startup. The control box provides the electrical control operate required for the griddle ignition system during normal heating operation.
Dimensions
- Length: 3.125 In
- Width: 5.125 In
- Height: 7 In
- Weight: 0.62 lbs
Product Notes
- Black Baso Ignition Control Box.
- Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
- 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
- Old Spark Post Ignition Cable Use # 38-1339
- Includes Adaptor, Round Post To 1/4" Female Tab Term,
- # 85-1071.
- Garland Oven All Convection Ovens With Lp Gas & Electronic
- Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
- Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
- Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
- Foreign Units).
- Us Range Oven Sdg-1, Sdg-2 Lp Units
