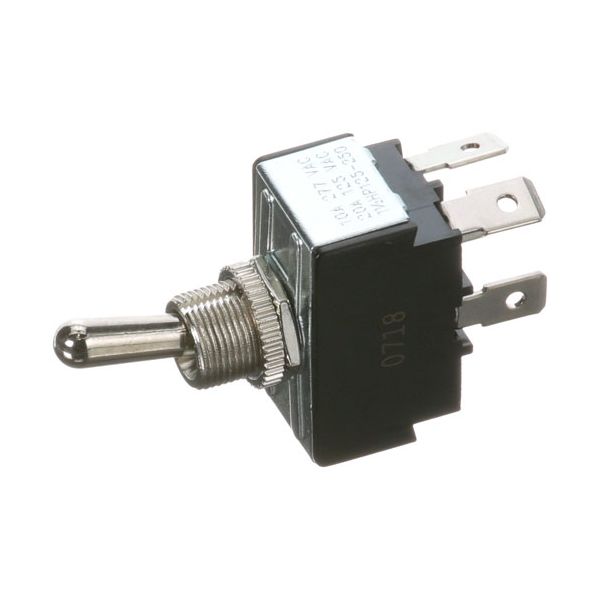

main product photo

Vulcan Hart 825100-10 Cheese Melter Toggle Switch DPST 1/2"

Be the first to review this product
Special Price $14.54 Regular Price $17.00
In stock
SKU
825100-10
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Vulcan Hart 825100-10 Toggle Switch 1/2" DPST is an electromechanical control that opens and closes two circuits to control the flow of power to heating coils in a cheese melter. It has a manual rocker system that closes or breaks electrical contact at the users input to turn on or off the generation of heat when required. It is connected to the internal wiring harness and it assists in controlling the amount of heat used and the preferred operating temperatures when preparing food.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 2.3 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-825100-10-toggle-switch-1-2-dpst-91937-2.jpg

Product Notes

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
ALTO-SHAAM:
BLOOMFIELD:
CLEVELAND:
2235100, CLE2235100, CLESK50056, SK50056
CRES COR:
0808-020, 0808020, 808-20, CRE808-20
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
INTEDGE:
LINCOLN:
MARKET FORGE:
SOUTHBEND:
STERO:
WEL2E-30169
WINSTON:
PS-2257, WINPS-2257
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 825100-10 Cheese Melter Toggle Switch DPST 1/2"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 825100-10 Toggle Switch?

Inspect the toggle switch regularly for loose connections and signs of wear. Keep terminals clean and dry to prevent electrical faults. Ensure power is disconnected before servicing. Proper care helps maintain reliable switching and safe operation.

What are common issues with the Vulcan Hart 825100-10 Toggle Switch?

  • Loose internal contacts are causing intermittent switching in switch mechanism.
  • Contact corrosion leading to poor conductivity.
  • Mechanical wear resulting in stiff or unresponsive toggle.
  • Overheating or arcing under heavy electrical load.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at the breaker to avoid shock.

Step2: Remove the control panel to access the switch.

Step3: Label and disconnect wires from the old switch.

Step4: Unscrew and remove the existing toggle switch.

Step5: Insert the new switch and secure it in place.

Step6: Reconnect wires to the correct terminals.

Step7: Reassemble panel, restore power, and test operation.
