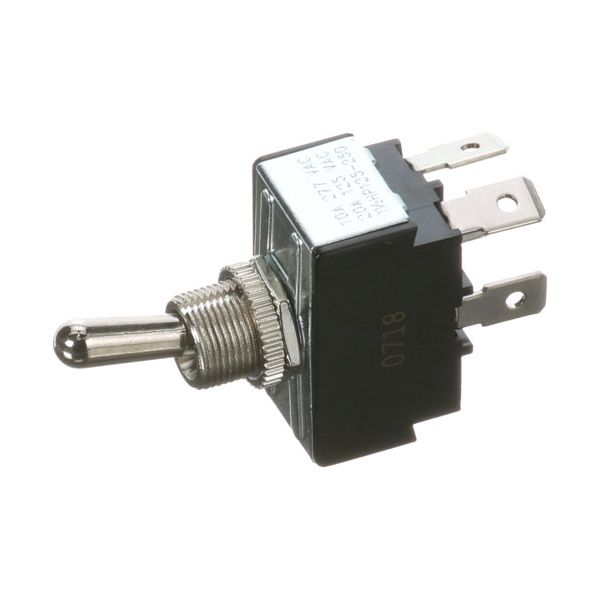

main product photo

Jackson 5930-301-22-18 Dishmachine Toggle Switch DPST 4-Pins 1/2"

Rating:
5 5 1
1  Review Add Your Review
Special Price $14.54 Regular Price $17.00
In stock
SKU
5930-301-22-18
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
Jackson 5930-301-22-18 Dishmachine Toggle Switch DPST 4-Pins 1/2" works through a double-pole, single-throw type of switch where two circuits can be switched simultaneously. It has a four-pin layout which allows proper connections and easy functioning in the electrical system. This toggle switch is commonly installed in commercial dishmachines, and it is built into the control panel to facilitate the necessary switching functions necessary to make the machine operate properly.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 2.3 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-5930-301-22-18-toggle-switch-1-2-dpst-99543-2.jpg

Product Notes

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
ALTO-SHAAM:
BLOOMFIELD:
CLEVELAND:
2235100, CLE2235100, CLESK50056, SK50056
CRES COR:
0808-020, 0808020, 808-20, CRE808-20
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
INTEDGE:
LINCOLN:
MARKET FORGE:
SOUTHBEND:
STERO:
WEL2E-30169
WINSTON:
PS-2257, WINPS-2257
Reviews 1
Write Your Own Review
You're reviewing:Jackson 5930-301-22-18 Dishmachine Toggle Switch DPST 4-Pins 1/2"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 5930-301-22-18 Toggle Switch ?

Inspect Dishmachine contacts regularly for corrosion and pitting to ensure reliable switching. Clean with electrical contact cleaner and keep connections tight to prevent overheating. Proper maintenance reduces downtime and prevents intermittent power loss during dishmachine operation.

What are common issues with the Jackson 5930-301-22-18 Toggle Switch ?

  • Dishmachine Contact wear causing intermittent switching.
  • Loose terminals leading to power failure.
  • Moisture ingress causing corrosion.
  • Switch actuator sticking or failing.
  • Electrical arcing under load.
  • Overheating at terminals due to high current.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and unplug dishmachine to secure from shock.

Step2: Remove access panel and locate faulty old switch wiring.

Step3: Disconnect terminals safely.

Step4: Mount new toggle switch in same orientation, secure hardware.

Step5: Reconnect wires to matching terminals per diagram.

Step6: Reassemble panel and restore power.

Step7: Test switch operation; ensure proper function before use.
