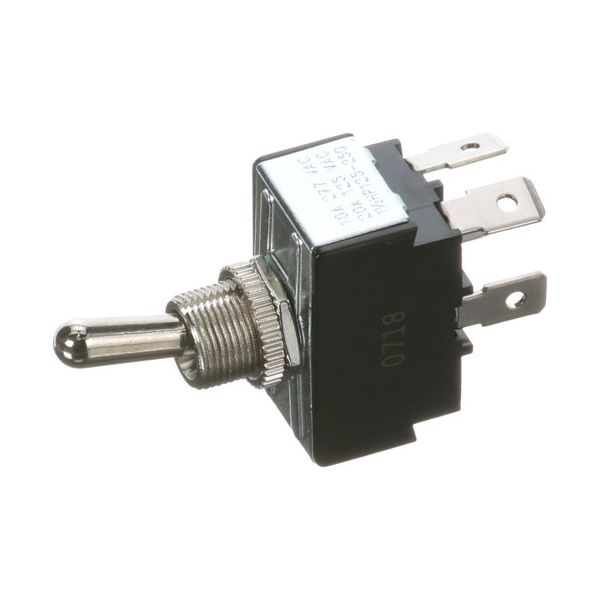

main product photo

Merco 970105 Toggle Switch DPST 1/2"

Be the first to review this product
Special Price $14.54 Regular Price $17.00
In stock
SKU
970105
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Merco 970105 Toggle Switch 1/2" DPST is a two-pole, one throw it opens and closes two circuits at the same time by a single lever action. It is made to fit into a 1/2" panel aperture, which gives a user interface to toggle between ON and OFF power states. The switch is connected to the rest of the electrical system and coordinates the distribution of power as a component of the control circuitry. It is applied in cases where the dual circuit control is required.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 2.3 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/m/e/merco-970105-toggle-switch-1-2-dpst-40994-2.jpg

Product Notes

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
ALTO-SHAAM:
BLOOMFIELD:
CLEVELAND:
2235100, CLE2235100, CLESK50056, SK50056
CRES COR:
0808-020, 0808020, 808-20, CRE808-20
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
INTEDGE:
LINCOLN:
MARKET FORGE:
SOUTHBEND:
STERO:
WEL2E-30169
WINSTON:
PS-2257, WINPS-2257
Reviews
Write Your Own Review
You're reviewing:Merco 970105 Toggle Switch DPST 1/2"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Merco 970105 Toggle Switch?

Inspect the toggle switch for secure electrical connections and stable mounting. Keep the surface clean to prevent grease or dust buildup affecting operation. Test switching response regularly. Ensure wiring insulation remains intact to maintain safe and proper electrical performance.

What are common issues with the Merco 970105 Toggle Switch?

  • Switch not turning equipment on/off.
  • Loose internal electrical contacts.
  • Intermittent power function.
  • Failure to maintain consistent circuit flow.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at the main circuit breaker to prevent electric shock.

Step2: Remove the old switch (if applicable) and disconnect wires carefully.

Step3: Connect wires to the new switch terminals following the wiring diagram (DPST configuration).

Step4: Secure the switch into the panel or mounting hole.

Step5: Tighten screws and ensure stable placement.

Step6: Restore power and test operationality safely.
