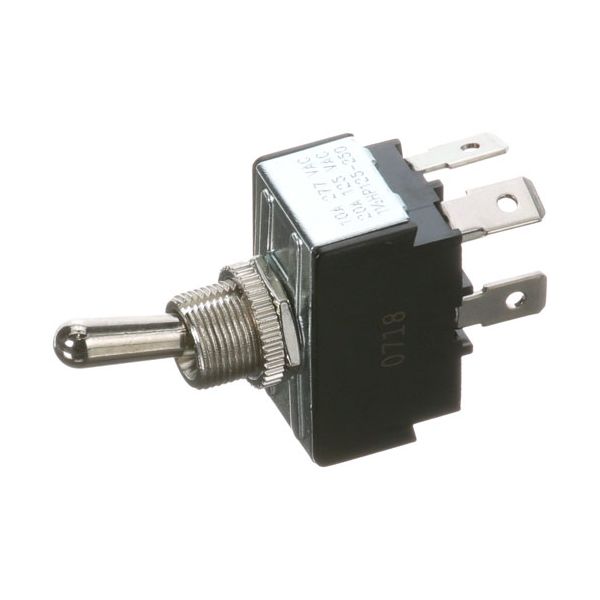

main product photo

Winston Products PS-2257 Toggle Switch DPST 1/2"

Be the first to review this product
Special Price $14.54 Regular Price $17.00
In stock
SKU
PS-2257
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Winston Products PS-2257 Toggle Switch DPST is an electrical switch used to switch power to compatible commercial foodservice equipment. It has a 1/2" mounting configuration that can be installed by the control panel and attached to the internal wiring system. This switch makes and breaks two circuits at the same time enabling controlled operation of heating elements, motors or other powered components. It is an element of the electrical control assembly of the appliance, which provides manual on/off control in warming cabinets, holding units and other kitchen equipment.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 2.3 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/w/i/winston-products-ps-2257-toggle-switch-1-2-dpst-26443.jpg

Product Notes

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
ALTO-SHAAM:
BLOOMFIELD:
CLEVELAND:
2235100, CLE2235100, CLESK50056, SK50056
CRES COR:
0808-020, 0808020, 808-20, CRE808-20
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
INTEDGE:
LINCOLN:
MARKET FORGE:
SOUTHBEND:
STERO:
WEL2E-30169
WINSTON:
PS-2257, WINPS-2257
Reviews
Write Your Own Review
You're reviewing:Winston Products PS-2257 Toggle Switch DPST 1/2"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Winston Products PS-2257 Toggle Switch?

Keep the toggle switch clean and dry to prevent contact contamination. Ensure wiring terminals remain tight and properly insulated. Verify proper response and stable electrical switching during repeated operation cycles without delay or failure.

What are common issues with the Winston Products PS-2257 Toggle Switch?

  • Switch not responding.
  • Intermittent electrical connection.
  • Toggle mechanism sticking.
  • Wiring loosening over time.
  • Power failure during use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at the circuit breaker to prevent electric shock.

Step2: Identify mounting location and drill a 1/2" hole if required.

Step3: Insert the switch into the panel and secure with the provided nut.

Step4: Connect wires to the DPST terminals as per wiring diagram.

Step5: Tighten all connections firmly.

Step6: Restore power and test switch operation.
