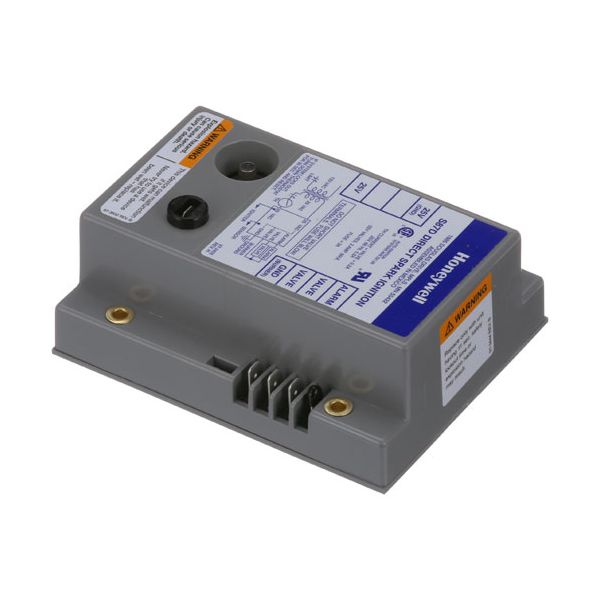

Frymaster FM807-0918 Spark Ignition Module 25V
Special Price $210.18 Regular Price $340.89
Out of stock
SKU
FM807-0918
Manufacturer:
The Frymaster FM807-0918 Direct Spark Ignition Module Lockout 5EA 1/4" Tab Terminals operates by receiving a call-for-heat signal and generating a high-voltage spark to ignite the gas-air mixture at the burner during the startup sequence. It operates through an internal control circuit that coordinates spark generation, gas valve activation, and flame sensing response to confirm ignition within the defined trial period. If a flame is not detected within approximately 11 second, the module enters a lockout mode to stop further ignition attempts until reset.
Dimensions
- Length: 5.125 In
- Width: 4 In
- Height: 2 In
- Weight: 1.2 lbs
Product Notes
- 25V Direct Spark Ignition Module,
- 11 Sec Lockout, 5Ea 1/4" Tab Terminals, 3 Amp Fuse (Ap#
- 381050),
- Rajah Spark Term & 1/4" Spark Term On Top.
- 4" X 5-1/16"
- For Use With A Flame Sensor And Ignitor.
- Before 1998 Use Spark Cable 27", # 38-1334
- 1998 And After Use 20" Spark Cable, # 38-1363
- Frymaster
- Fryer Fh250, G18Fb, G24Fb, Gl18Fb,
- Gl24Fb, He, Mach52, Mjh50.
