Frymaster FM8070918 Spark Ignition Module 11-Seconds 3 AMP 25V
Special Price $210.18 Regular Price $340.89
Out of stock
SKU
FM8070918
Manufacturer:

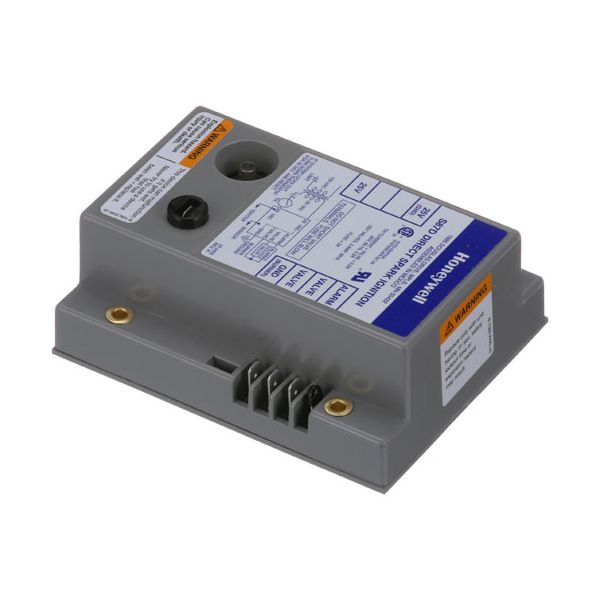

The Frymaster FM8070918 Direct Spark Ignition Module 5EA 1/4" Tab Terminals is an essential part that receives a signal from the appliance control board and generates a high-voltage spark to ignite the burner gas during startup. It continuously monitors flame presence through a sensing response circuit and, if ignition is not detected, initiates an 11-second lockout that stops spark generation and pauses the ignition sequence until conditions reset. The unit is installed inside the fryer control compartment, or cabinet, near the burner assembly and connects through 1/4-inch tab terminals for electrical integration within commercial systems and related equipment housings.
Dimensions
- Length: 5.125 In
- Width: 4 In
- Height: 2 In
- Weight: 1.2 lbs
Product Notes
- 25V Direct Spark Ignition Module,
- 11 Sec Lockout, 5Ea 1/4" Tab Terminals, 3 Amp Fuse (Ap#
- 381050),
- Rajah Spark Term & 1/4" Spark Term On Top.
- 4" X 5-1/16"
- For Use With A Flame Sensor And Ignitor.
- Before 1998 Use Spark Cable 27", # 38-1334
- 1998 And After Use 20" Spark Cable, # 38-1363
- Frymaster
- Fryer Fh250, G18Fb, G24Fb, Gl18Fb,
- Gl24Fb, He, Mach52, Mjh50.
