Frymaster FM826-2013 Thermostat TC125 200-400F 36" Capillary
Special Price $73.36 Regular Price $155.43
Out of stock
SKU
FM826-2013
Manufacturer:

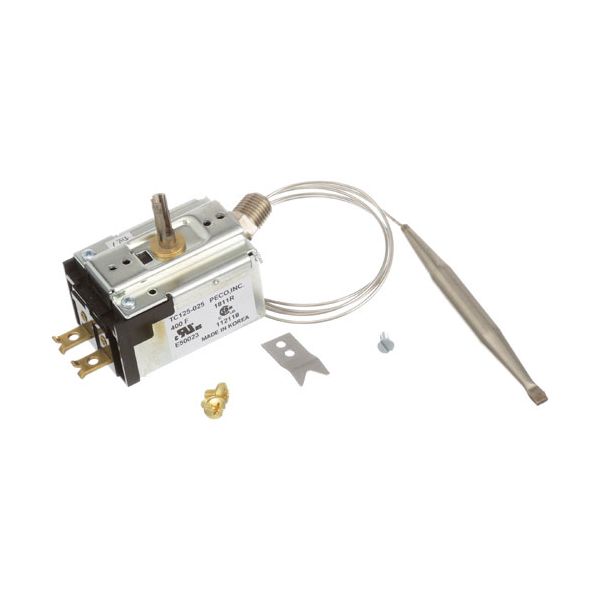

The Frymaster FM826-2013 Thermostat TC125 Cap 36" 200-400 F detects temperature based on a capillary bulb detecting heat and opening or closing the internal switch when the conditions reach the set points. The thermostat adjusts the circuit up or down to regulate heating based on system design as the sensed temperature changes up or down within the range. It is put in the heating chamber or close to the heat source of the compatible fryers. This thermostat is designed to be replaced when the original does not react to the changes in temperature during normal operation.
Dimensions
- Length: 5.75 In
- Width: 2 In
- Height: 2.375 In
- Weight: 0.48 lbs
Product Notes
- [ Peco Type - Tc125 ] [ Temp 200-400 ]
- [ Bulb 3/8" X 3-1/2"] [ Cap 36" ] [ 1/4" Stuff Box ]
- [ Dial To Use # 22-1006 Off-400-200, 4-Way ]
- Garland Dial To Use # 22-1027, [Off-400-200] [Mount .187"]
- [Flat Down ]
- Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
- This Thermostat Is Used By Frymaster And Comes
- With A Clip To Keep The Temperature From Moving Up, Due
- To Dial Being Bumped. The Clip Puts Pressure On The Shaft
- Of The Thermostat.
- Imperial Has Used This Thermostat In The Past. They May
- Also Use The Robertshaw Equivalent # 46-1272.
