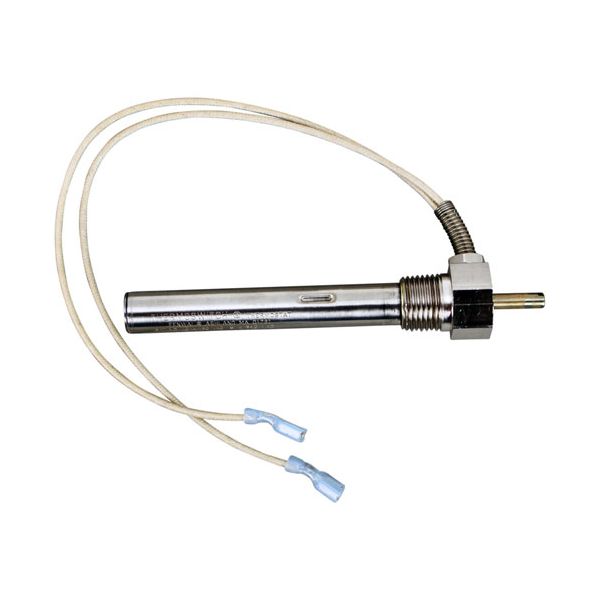

Garland 1284200 Thermostat Fenwal 75-550°F
Special Price $251.80 Regular Price $394.67
In stock
SKU
1284200
Manufacturer:
The Garland 1284200 Thermostat Fenwal 75-550°F is a temperature control part designed for commercial cooking equipment. It can be used to monitor the temperature of the heat and control the heating system to keep the heat at the desired operating temperature. It is placed in the control assembly and monitors the temperature and turns the heating circuit on or off as necessary. It can be used in combination with burners or heating elements to ensure controlled heat during cooking cycles. It is used to support and ensure proper temperature control and even cooking in commercial kitchens.
Dimensions
- Length: 6 In
- Width: 1.5 In
- Height: 0.5 In
- Weight: 0.354 lbs
Product Notes
- Fenwal T'Stat, Melt W/Wire Leads, 2Ea. 1/4" F Push-On,
- Temp 75-550, Mount 1/2 Npt, Probe = 4-3/4".
- Dial A2252, # 221185 ( Round W/Indicator Arrow)
- Dial Plate A3335, K-178, # 221344
- Dial Lock Plate For Model Mj41E, Mj45E
- T'Stat Flexible Shaft For Mj45E, W-604, # 263646
- Flex Shaft Adaptor For W-604, = W-605, # 263629
- Frymaster
- Fryer Fm(2Cfesc,45E,241Esc,245Esc,345), J1C, J3(F,Fc),
- J65X, Jcfx, Mac52, Mj40, Mj40E, Mj41, Mj41E, Mj42,
- Mj45E, Mj245E, Mjcf, Mjcfe, Mjcfsc.
- Series: Mac50 & Mac51
- (Mac50/51/150/151/250/251/350/351).
- Hobart [ Dial To Use # 22-1062 Pointer ]
