Frymaster FM8060181 TEMP Fenwal Thermostat W/Wire Leads 2EA 75°F-550°F 1/4" F Push-On 1/2" NPT 4-3/4" Probe
Special Price $251.80 Regular Price $394.67
In stock
SKU
FM8060181
Manufacturer:

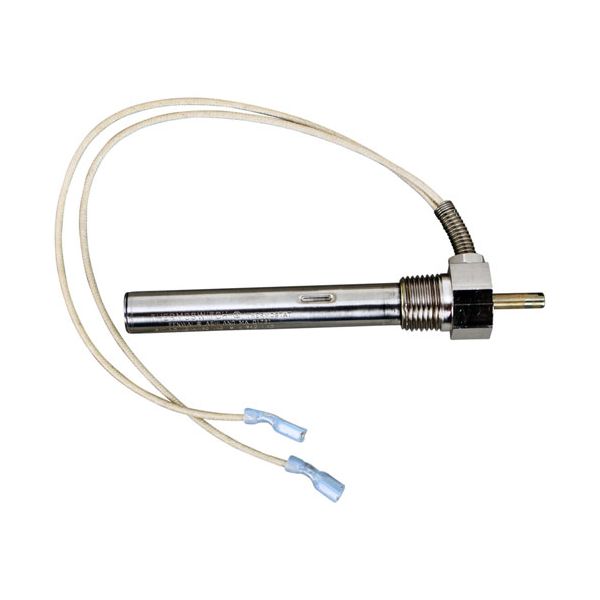

The Frymaster FM8060181 Temperature Fenwal Thermostat with wire leads is a temperature-regulating part used to control heat output in commercial cooking equipment. It operates by sensing temperature variations and regulating electrical circuits to maintain the chosen setting within a 75°F to 550°F range. Designed with wire leads, two 1/4-inch push-on terminals, a 1/2-inch NPT mounting connection, and an adjustment dial it is installed as part of the temperature control system. The stable temperature regulation supports efficient equipment operation promotes consistent heating performance, and assists in preventing overheating.
Dimensions
- Length: 6 In
- Width: 1.5 In
- Height: 0.5 In
- Weight: 0.354 lbs
Product Notes
- Fenwal T'Stat, Melt W/Wire Leads, 2Ea. 1/4" F Push-On,
- Temp 75-550, Mount 1/2 Npt, Probe = 4-3/4".
- Dial A2252, # 221185 ( Round W/Indicator Arrow)
- Dial Plate A3335, K-178, # 221344
- Dial Lock Plate For Model Mj41E, Mj45E
- T'Stat Flexible Shaft For Mj45E, W-604, # 263646
- Flex Shaft Adaptor For W-604, = W-605, # 263629
- Frymaster
- Fryer Fm(2Cfesc,45E,241Esc,245Esc,345), J1C, J3(F,Fc),
- J65X, Jcfx, Mac52, Mj40, Mj40E, Mj41, Mj41E, Mj42,
- Mj45E, Mj245E, Mjcf, Mjcfe, Mjcfsc.
- Series: Mac50 & Mac51
- (Mac50/51/150/151/250/251/350/351).
- Hobart [ Dial To Use # 22-1062 Pointer ]
