main product photo

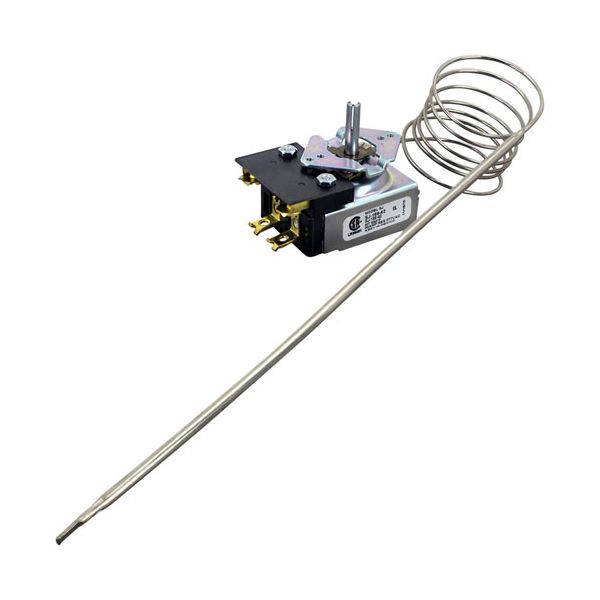

Vulcan Hart 5300-02C Vertical Mount W/ Auxiliary Switch 3/16" X 11-5/8"

Be the first to review this product
Special Price $116.28 Regular Price $210.27
In stock
SKU
5300-02C
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
The Vulcan Hart 5300-02C Vertical Mount Thermostat with an auxiliary switch is a temperature control part for commercial ovens and griddles through precise heat regulation. This part between 175-550°F temperature range using a 3/16" x 11-5/8" sensing bulb connected to a 42" capillary for precise temperature control. This Type SJ thermostat works with both older and newer range models while providing smooth replacement and high operational results. This part optimizes cooking speed while providing steady heating to work with Montague Vectaire Rair Oven Series VL and Vulcan Oven & Griddle Series. The dial compatibility features enable users to install the system according to their shaft orientation requirements.

Dimensions

  • Length: 12.5 In
  • Width: 2.25 In
  • Height: 2.5 In
  • Weight: 0.6 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-5300-02c-vertical-mount-w-auxiliary-switch-3-16-x-11-5-8-25554-2.jpg

Product Notes

  • [ Type - Sj ] [ Temp 175-550 ] [ Bulb 3/16" X 11-5/8" ]
  • [ Cap 42" ] Type 1 Vert Mount, W/ Aux Switch.
  • Dial To Use = #22-1270 (T'Stat Shaft Flat Down) Or
  • # 22-1441 (Tstat Shaft Flat Up)
  • Oem Previously Used Type K Style. New Ranges May Use Sj
  • Type. Sj Will Work With Old Ranges.
  • Montague Oven Vectaire: 2Ek8, 2Ek15A, Ek8, Ek15A.
  • Rair Oven Series Vl ( Newer Model 2000 Use Digital T/Stat)
  • Vulcan Oven Series: E24, 36, 48, 60 W/L/Lc/Lcc Suffix,9030.
  • Vo004, Vo008 Old Style
  • Griddle Series: E24, 36, 48, 60 W/L/Lc/Lcc Suffix.
U-LINE:
5300-023, K44-42, K44-60
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 5300-02C Vertical Mount W/ Auxiliary Switch 3/16" X 11-5/8"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 5300-02C Auxiliary Switch?

Inspect the switch assembly regularly for secure mounting and clean electrical contacts. Ensure wiring connections remain tight and free from corrosion or heat damage. Power down equipment before servicing and test switch operation periodically to confirm accurate performance and safe activation.

What are common issues with the Vulcan Hart 5300-02C Auxiliary Switch?

  • Faulty or worn auxiliary switch causing inconsistent signal output.
  • Loose mounting leading to misalignment actuation.
  • Electrical contact corrosion causing intermittent connectivity failures.
  • Wiring damage resulting in loss of function or short circuits.
  • Mechanical sticking or delayed switch response during operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main power supply and verify circuit is fully de-energized before starting.

Step2: Remove existing mount and clean installation surface free of debris and dust.

Step3: Position vertical mount and align 3/16" hardware holes carefully with bracket points.

Step4: Secure mount with fasteners and tighten evenly to manufacturer specifications.

Step5: Connect auxiliary switch wiring per schematic, ensure insulation and secure terminals.

Step6: Restore power and test switch operation and stability under load conditions.
