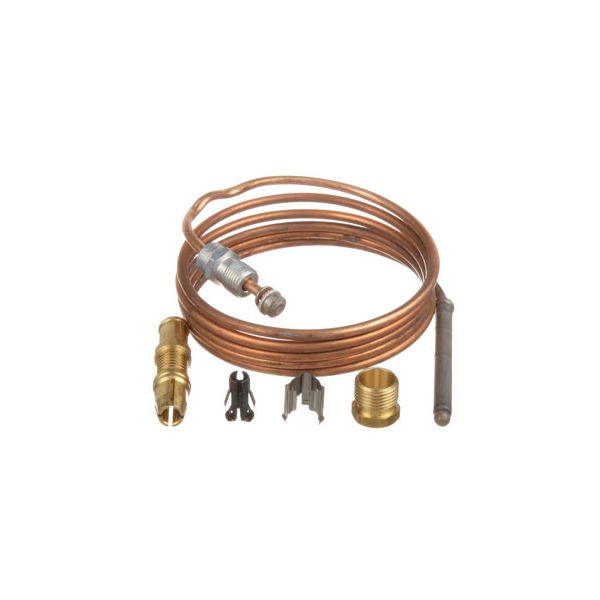

Blodgett 100653 Oven Thermocouple

Rating:

13 Reviews Add Your Review

Special Price $23.10 Regular Price $30.00

In stock

SKU

100653

Categories: Fryer Parts, Fryer Thermocouples, Shop by manufacturers

Manufacturer:

Blodgett

The Blodgett 100653 Oven Thermocouple measures the temperature changes by transforming heat into an electrical signal that is sent to the control system. The process enables the appliance to track the inner conditions and react to the temperature changes. The thermocouple is placed inside the oven cavity and it is placed in such a way that it feels the cooking conditions without blocking the airflow and air distribution. It is connected directly to the control mechanism of the oven, and it provides constant information to control heating elements.

Dimensions

Weight: 0.42 lbs

Details

Sensing burner flame conditions within gas ovens, the Blodgett 100653 Oven Thermocouple 48" Snap-Fit is an OEM temperature-sensing component used as part of the oven’s gas safety system. The thermocouple responds to heat at the flame-sensing end and produces the electrical signal used by the connected safety control. Its snap-fit configuration provides the designated connection arrangement within the oven assembly.

Flame Temperature Sensing:
Responding to heat generated by the burner flame, the thermocouple produces a small electrical signal based on the temperature difference between its sensing junction and reference end. This signal provides the gas safety system with an indication of the flame condition during oven operation.

Gas Safety Signal:
Providing a flame-status signal to the connected gas safety control, the thermocouple supports the control of gas flow according to the detected flame condition. This interaction forms part of the oven’s safety sequence and helps the gas control respond to the presence or absence of sufficient flame heat.

Replacement Guidelines:
Replace the Blodgett 100653 Oven Thermocouple when it no longer provides the required flame-sensing signal or when physical damage affects its intended function. Select the replacement by matching the thermocouple configuration, connection arrangement, length, and applicable Blodgett oven model.

Common Failure Symptoms:

Burner flame does not remain established as expected.
Oven heating operation is interrupted by inconsistent flame detection.
Thermocouple shows visible damage or deformation.
Snap-fit connection no longer maintains its intended position.
Flame-sensing operation becomes inconsistent.

Equipment Compatibility:
Designed for compatible Blodgett commercial gas ovens, this OEM component should be selected according to the applicable oven configuration. Verify the equipment model, thermocouple arrangement, connection type, and part number 100653 before selecting the component.

Technical Specifications:
Part Number: 100653
Brand: Blodgett
Component Name: Thermocouple
Equipment Type: Commercial Gas Oven
Length: 48"
Connection Type: Snap-Fit

Replaces Parts

ANETS:

ANEP8903-48, P8903-48

BLODGETT:

100653, 52091

GROEN:

8163, GR8163

IMPERIAL:

1137, IMP1137

MARSAL AND SONS:

100653, 52091

U-LINE:

1980-048

Reviews 13

Write Your Own Review

FAQS

Customer Questions

How does the Snap-Fit Thermocouple enhance my kitchen efficiency?

The Snap-Fit design ensures quick and easy installation, reducing downtime and enhancing operational efficiency.

How quickly does the thermocouple respond to temperature changes?

The thermocouple features a rapid response sensor that captures temperature changes swiftly, allowing for real-time adjustments.

What maintenance is required for the Blodgett 100653 Thermocouple?

To keep it functioning properly, regularly check that the thermocouple is firmly connected and correctly positioned in the pilot flame. Clean off carbon or debris buildup to maintain accurate millivolt output and flame detection. Inspect for corrosion, cracks, or wear that may reduce performance. Always turn off gas and power before servicing to ensure safety.

What are common issues with the Blodgett 100653 Thermocouple?

Inaccurate temperature readings.
Open or shorted circuits.
Signal drift due to corrosion or buildup.
Mechanical damage from bending or vibration.

What type of sensing component is the Blodgett 100653?

The Blodgett 100653 is an oven thermocouple with a documented 48-inch length, identifying its temperature-sensing configuration for compatible commercial ovens.

How does a thermocouple respond to oven temperature?

A thermocouple responds to changes in temperature by generating an electrical signal related to the temperature at its sensing junction.
