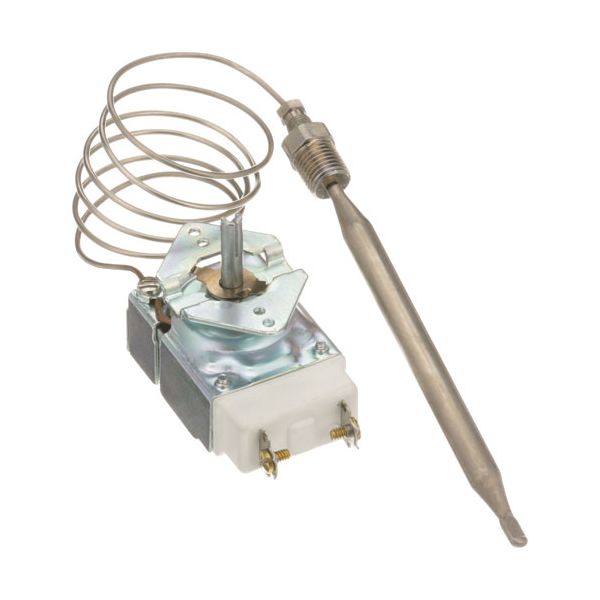

Controls cooking oil temperature in Anets RX commercial fryers designed for this millivolt thermostat configuration. The Anets 60125401 Fryer Thermostat senses oil temperature through a 3/8" x 5" sensing element connected to a 36" capillary tube and controls the heating cycle within a temperature range of 200–400°F. Designed for millivolt-operated fryer systems, it responds to temperature changes to maintain the selected cooking temperature. Verify the equipment model number, part number, temperature range, sensing element dimensions, capillary length, and specifications before selecting a replacement.
Temperature Sensing:
Monitors cooking oil temperature through the sensing bulb and capillary assembly and regulates the millivolt control circuit according to the selected temperature setting. As the oil reaches the set temperature, the thermostat changes the control circuit to reduce or stop heat input. When the temperature drops below the selected setting, it restores the heating cycle. This continuous sensing and control process helps maintain consistent cooking temperatures throughout normal fryer operation.
Sensing Assembly:
The thermostat uses a capillary-based sensing arrangement connected to the control assembly. The sensing tube allows the thermostat to respond to temperature changes at the designated sensing location.
Replacement Guidelines:
Replace the Fryer Thermostat if it is damaged, provides inconsistent temperature response, or no longer maintains the required temperature regulation. The part number 60125401 should be verified before replacement to ensure the correct thermostat is selected. Replace the component if deterioration affects temperature sensing, control response, temperature regulation, or normal fryer operation.
Common Failure Symptoms:
- Inconsistent fryer temperature readings
- Heating cycles not responding correctly
- Difficulty maintaining the selected temperature setting
- Irregular temperature control during operation
- Burner cycling outside the selected temperature range
Equipment Compatibility:
The Anets 60125401 Fryer Thermostat 200°F-400°F 3/8" X 5" 36" Capillary Millivolt RX is designed for Anets RX commercial fryers requiring this thermostat configuration. Verify the fryer model number, part number, temperature range, sensing element dimensions, capillary length, and required specifications before purchase.
Technical Specifications:
Brand: Anets
Part Number: 60125401
Component Name: Millivolt Thermostat
Appliance Type: Commercial Fryer
Temperature Range: 200–400°F
Capillary Length: 36"
