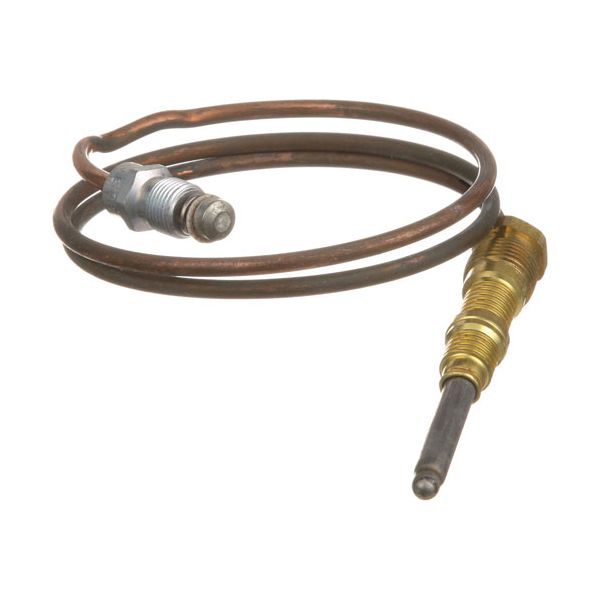

main product photo

Vulcan Hart VH00-412788-00003 Thermocouple 24"L 20-30mV 1900 Series HD

Be the first to review this product
Special Price $25.98 Regular Price $33.75
In stock
SKU
VH00-412788-00003
Add to Wish List
Fryer Parts, Fryer Thermocouples, Shop by manufacturers
Manufacturer:
The Vulcan Hart VH00-412788-00003 Thermocouple is a flame sensor that was used in the 1900 Series HD in commercial service equipment. It is 24" long and works by generating a 20-30 millivolt electrical signal when it is subjected to pilot flame heat. This signal makes the gas control valve operate correctly so that the fuel is supplied. The thermocouple is normally mounted next to the pilot assembly and is used in large-volume foodservice settings where there should be uniform operation. Its position in the system facilitates safety in operation, better ignition and better control of the burner in normal use.

Dimensions

  • Length: 4.25 In
  • Width: 1 In
  • Height: 1 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-vh00-412788-00003-1900-series-hd-thermocouple-24-l-20-30-mv-88862.jpg

Product Notes

  • 1900 Series Heavy Duty Thermocouple 24" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets
  • Fryer Where Applicable
  • Cecilware
  • Fryer Gf(8,16,28), Fm28
ANETS:
CECILWARE:
GRINDMASTER:
HOBART:
00-412788-00003, 00-412788-00020, 412788-00003, 412788-00020, 412788-20, 412788-3, HOB00-412788-00003, HOB412788-00003, HOB412788-3
SOUTHBEND:
STAR MFG:
STERO:
TOARH36
U-LINE:
1900-024
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart VH00-412788-00003 Thermocouple 24"L 20-30mV 1900 Series HD
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart VH00-412788-00003 Thermocouple?

Regularly inspect the thermocouple for soot, grease, or corrosion that could interfere with accurate flame sensing and millivolt output. Keep the pilot assembly clean and ensure the thermocouple tip remains properly positioned in the pilot flame. Check connections for looseness or damage that may affect signal transmission.

What are the common issues with the Vulcan Hart VH00-412788-00003 Thermocouple?

  • Loss of millivolt output is causing pilot light failure.
  • Poor flame contact leading to intermittent gas valve shutdown.
  • Corrosion or loose terminal connections are disrupting signal flow.
  • Soot accumulation on the probe reduces flame detection accuracy.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply, allow unit to cool, wear gloves, and access the control panel.

Step2: Remove old thermocouple from pilot assembly and note routing path carefully.

Step3: Install new thermocouple tip in pilot flame position and secure bracket firmly.

Step4: Route lead to safety valve and tighten connection securely.

Step5: Restore gas supply, ignite pilot, and check for leaks using soapy water.
